Removal and Installation from Vehicle (For 2WD models): Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

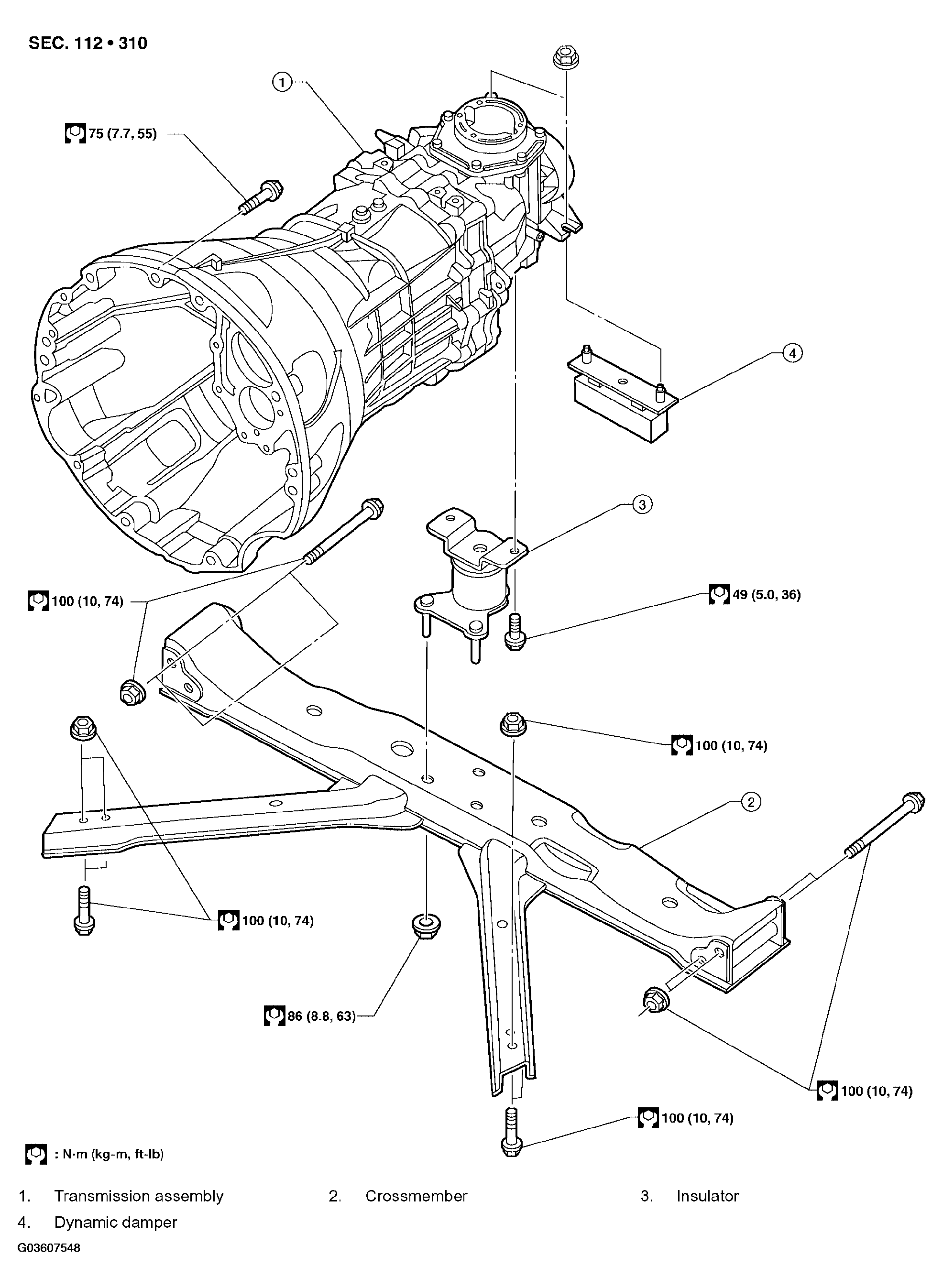

Fig 1: Removing & Installing Transmission Assembly From Vehicle With Torque Specifications (For 2Wd Models)
G03607548Courtesy of NISSAN MOTOR CO., U.S.A.
