Baulk Ring Clearance

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Unit: mm (in)

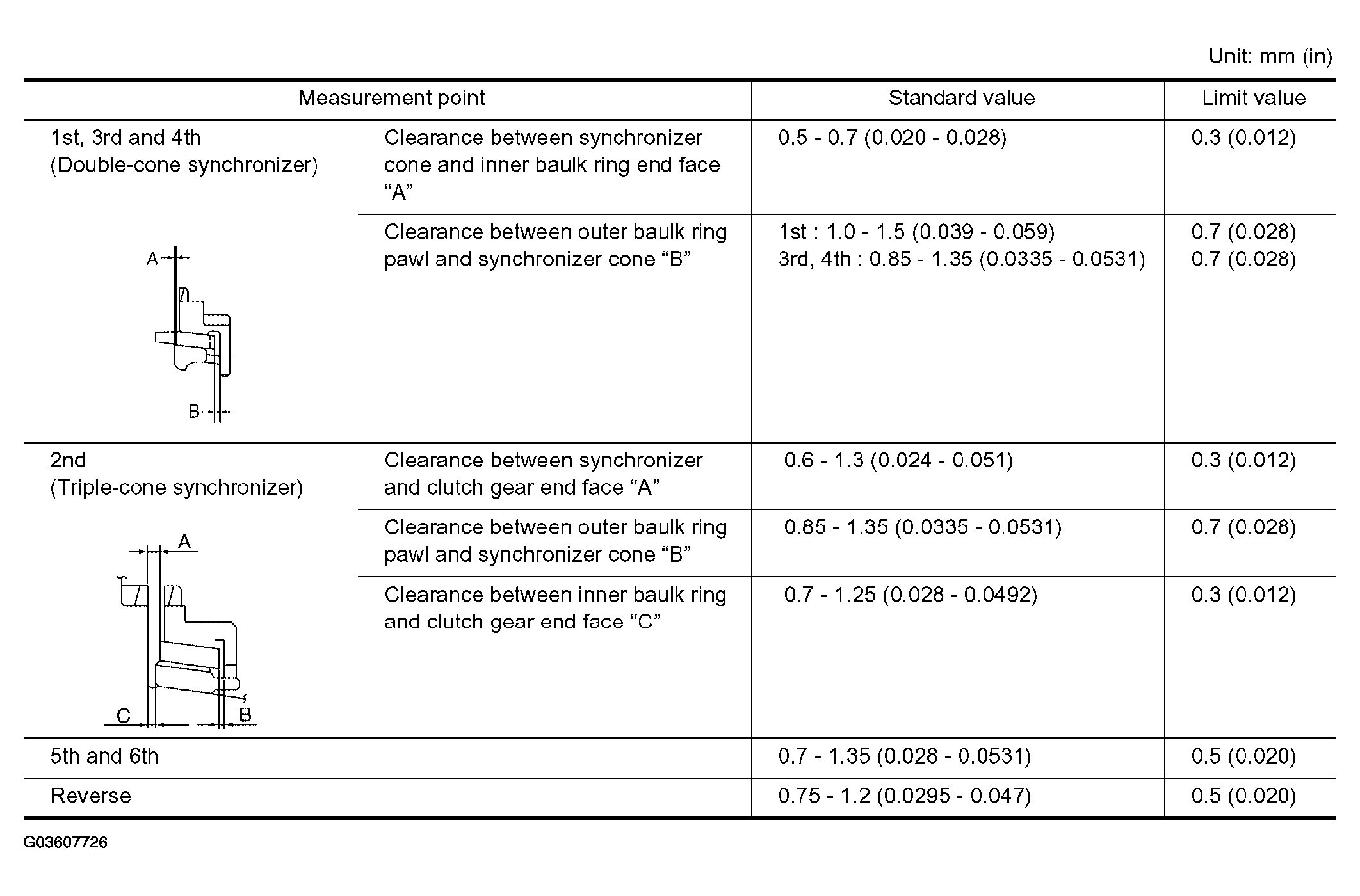

Fig 1: Baulk Ring Clearance Specification Table
G03607726Courtesy of NISSAN MOTOR CO., U.S.A.
