Oil Leakage And Oil Level
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure that oil is not leaking from the transmission or around it.

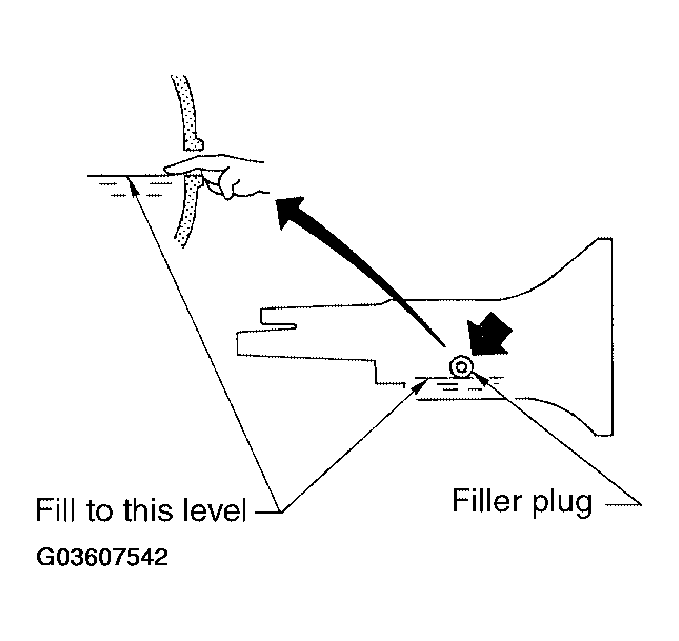

- Check oil level from the filler plug hole as shown.CAUTION: Do not start engine while checking oil level.
- Set a gasket on the filler plug and install it to the transmission. Tighten the filler plug to the specified torque. Refer to
"CASE COMPONENTS ".CAUTION: Do not reuse gasket.
