Blower Motor: Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Blower Motor

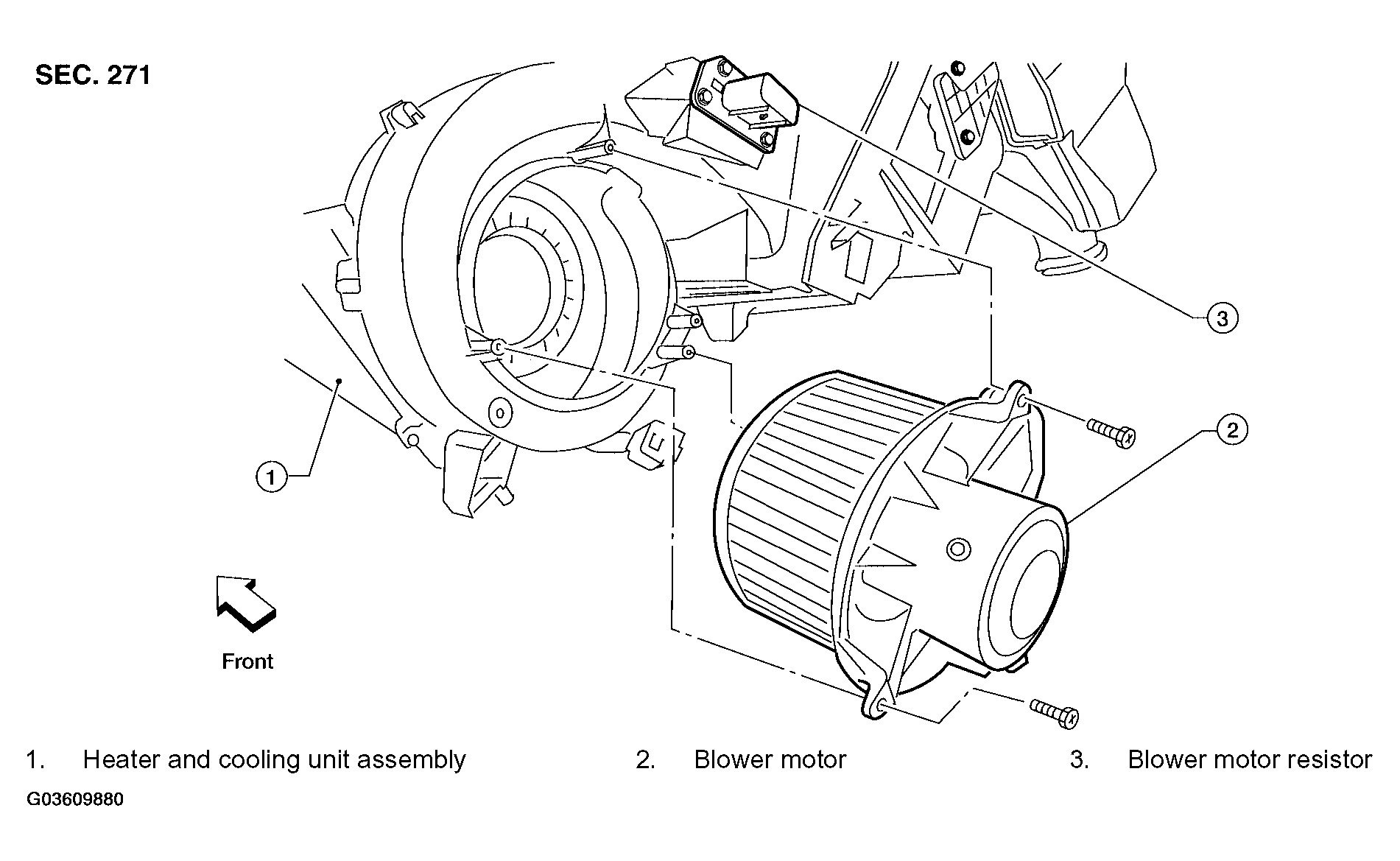

Fig 1: Identifying Blower Motor Components
G03609880Courtesy of NISSAN MOTOR CO., U.S.A.
