Consult-II Setting Procedure

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the CONSULT-II Operations Manual.

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

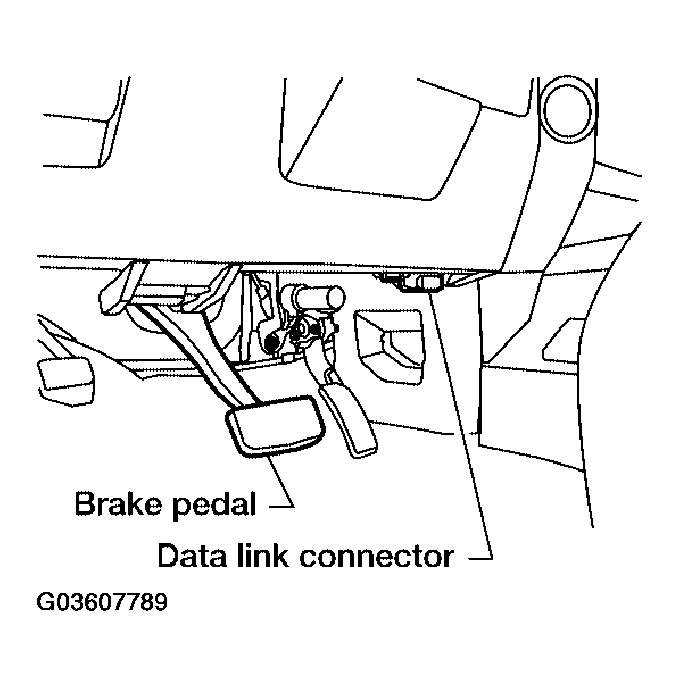

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON". (Do not start engine.)
Touch "START (NISSAN BASED VHCL)".

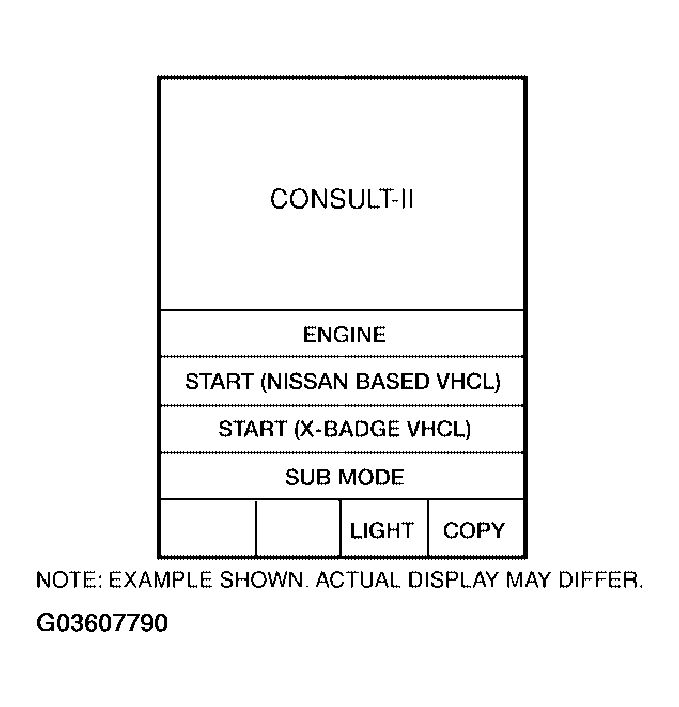

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
Perform each diagnostic test mode according to each service procedure.

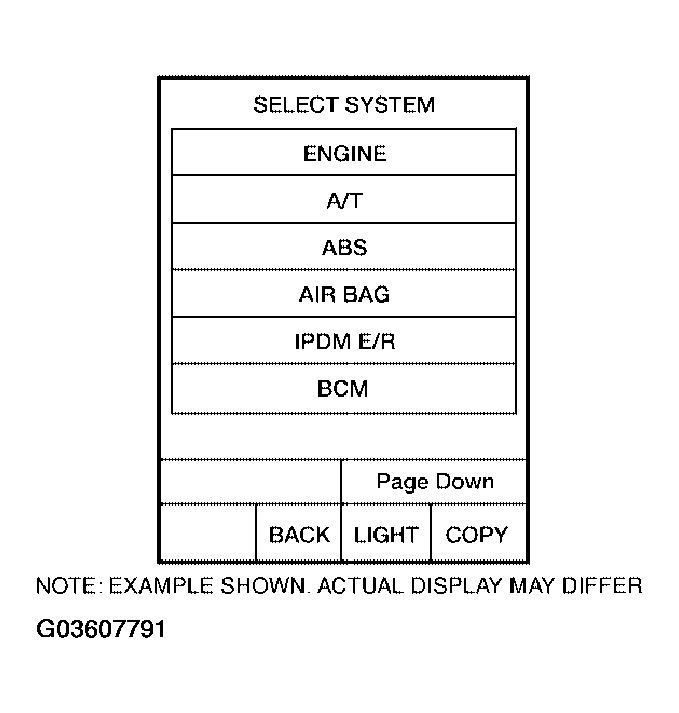

Fig 3: CONSULT-II Display - A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
