Removal and Installation (2WD): Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

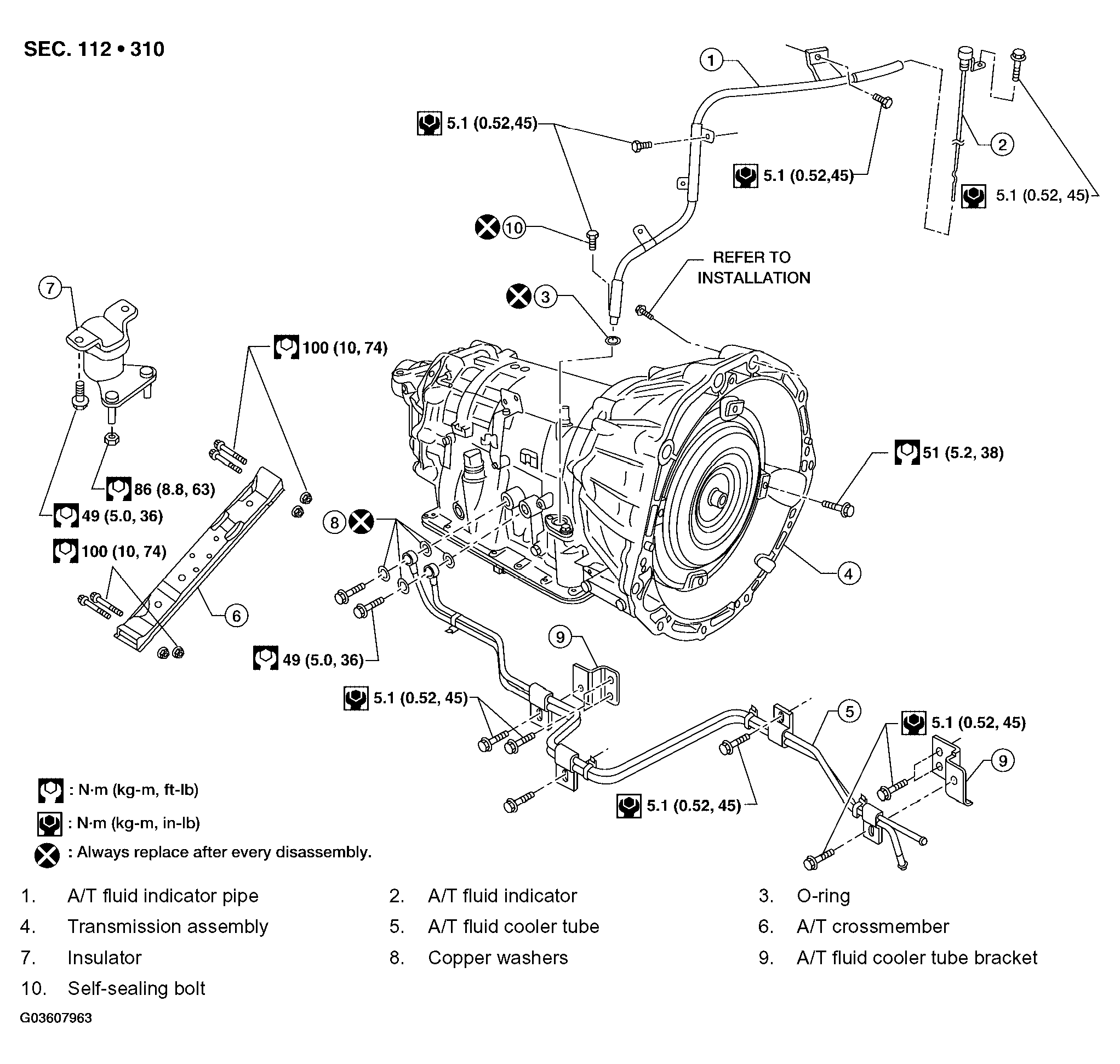

Fig 1: Removing/Installing Transmission Assembly With Torque Specifications - (2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.
