Intake Manifold
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- If stud bolts were removed from cylinder head, install them and tighten to the specified torque.
Intake manifold studs: 11.0 N.m (1.1kg-m, 8 ft-lb)

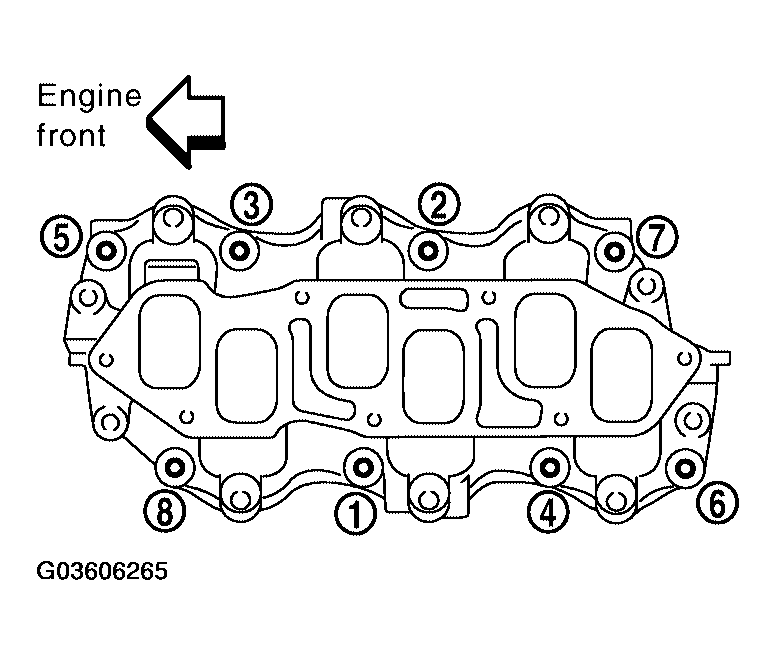

- Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown below.
Intake manifold bolt and nuts
1st step: 7.4 N.m (0.75 kg-m, 5 ft-lb)
2nd step and after: 29.0 N.m (3.0 kg-m, 21 ft-lb)
