When New Cylinder Block is Used

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check the cylinder bore grade ("1", "2", or "3") on rear side of cylinder block, and select piston of the same grade.

NOTE: Piston is available with piston pin as a set for the service part. (Only "0" grade piston pin is available.)

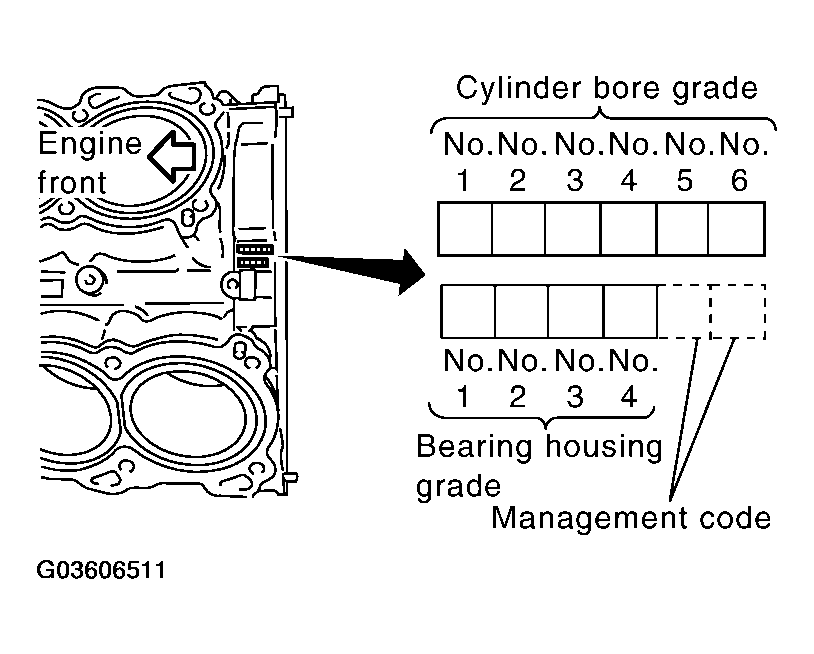

Fig 1: Identifying Cylinder Bore Grade And Bearing Housing Grade
G03606511Courtesy of NISSAN MOTOR CO., U.S.A.
