Stop Light Connectors

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

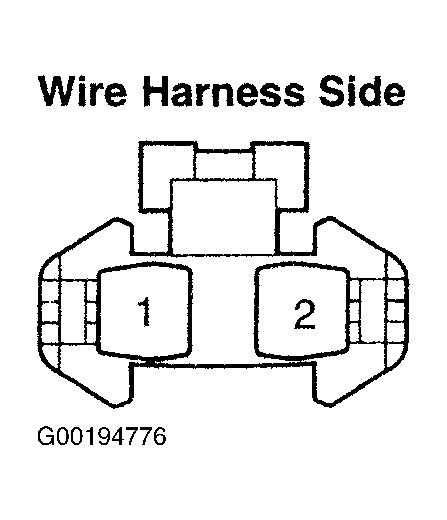

Fig 1: Identifying High-Mounted Stop Light Assembly Connector Terminals
G00194776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

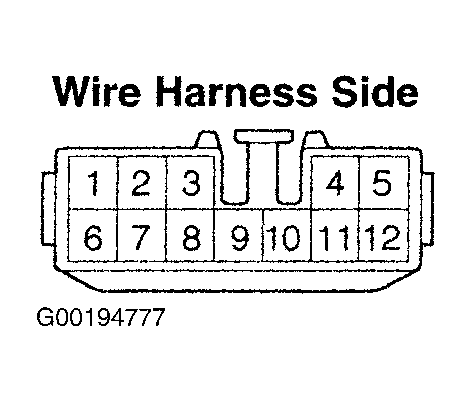

Fig 2: Identifying Light Failure Sensor Connector Terminals
G00194777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
