Section 1498 (Body, Lock & Security System)
>>
Body Repair
>>
Replacement Operations
>>
Rear Floor Rear
Rear Floor Rear
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Work after rear panel has been removed.
Service Joint

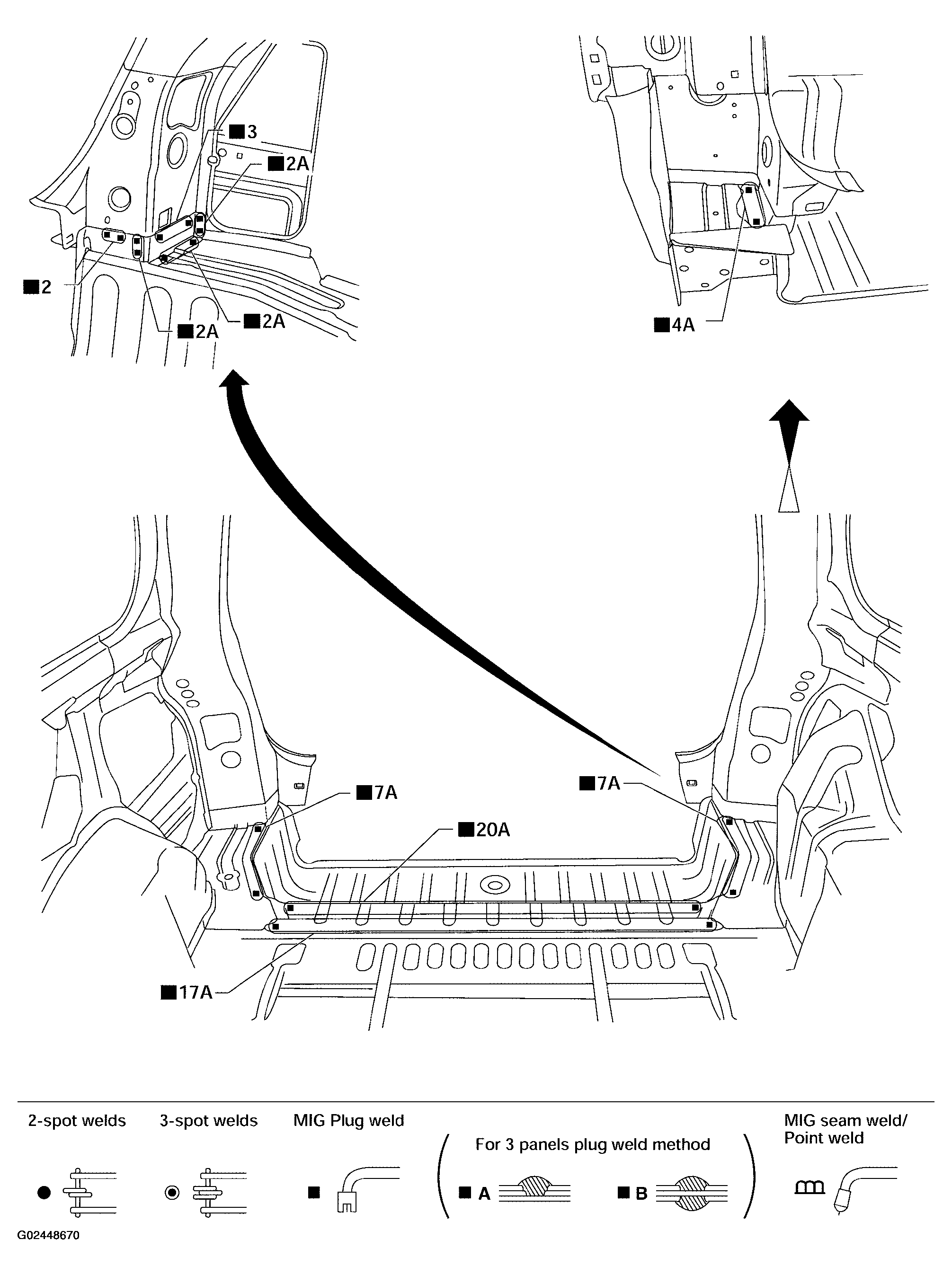

Fig 1: Identifying Rear Floor Rear Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
