Removal and Installation for Audio Unit
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove cluster lid D. Refer to "INSTRUMENT PANEL ASSEMBLY ".

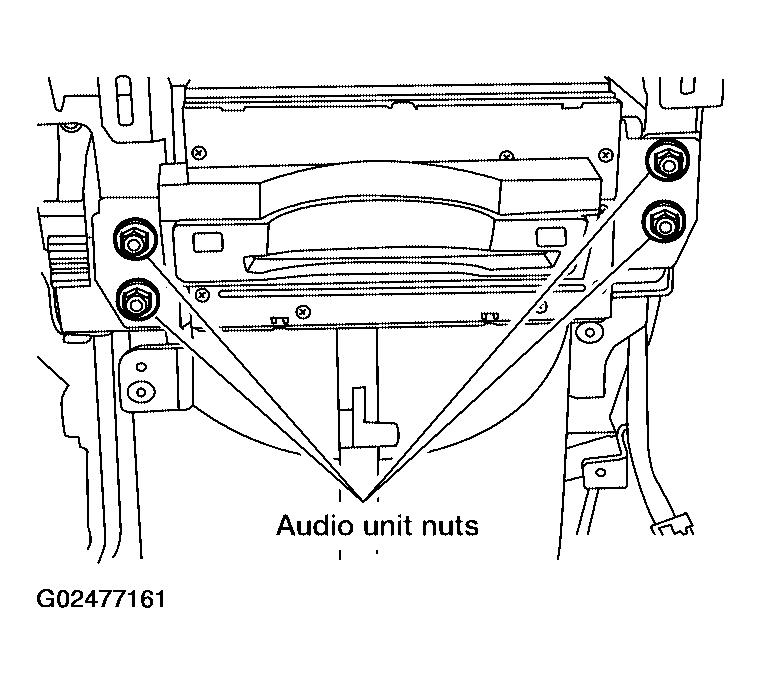

- Using power tool, remove the four audio unit nuts.
- Pull out audio unit and disconnect connectors.
- Installation is in the reverse order of removal.
Audio unit nuts: 6 N.m (0.6 kg-m, 53 in-lb)
