Control System: Outline

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The automatic transaxle senses vehicle operating conditions through various sensors. It always controls the optimum shift position and reduces shifting and lock-up shocks.

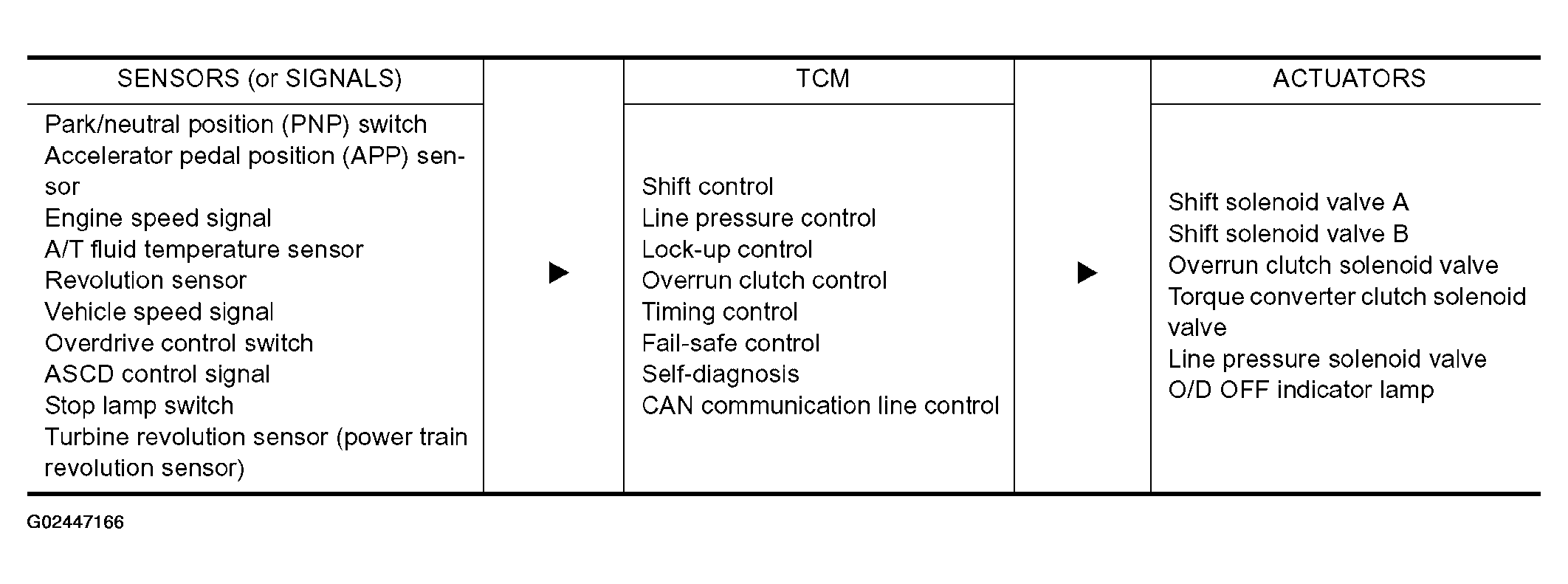

Fig 1: Control System Outline Description
G02447166Courtesy of NISSAN MOTOR CO., U.S.A.
