Overrun Clutch Operating Conditions

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

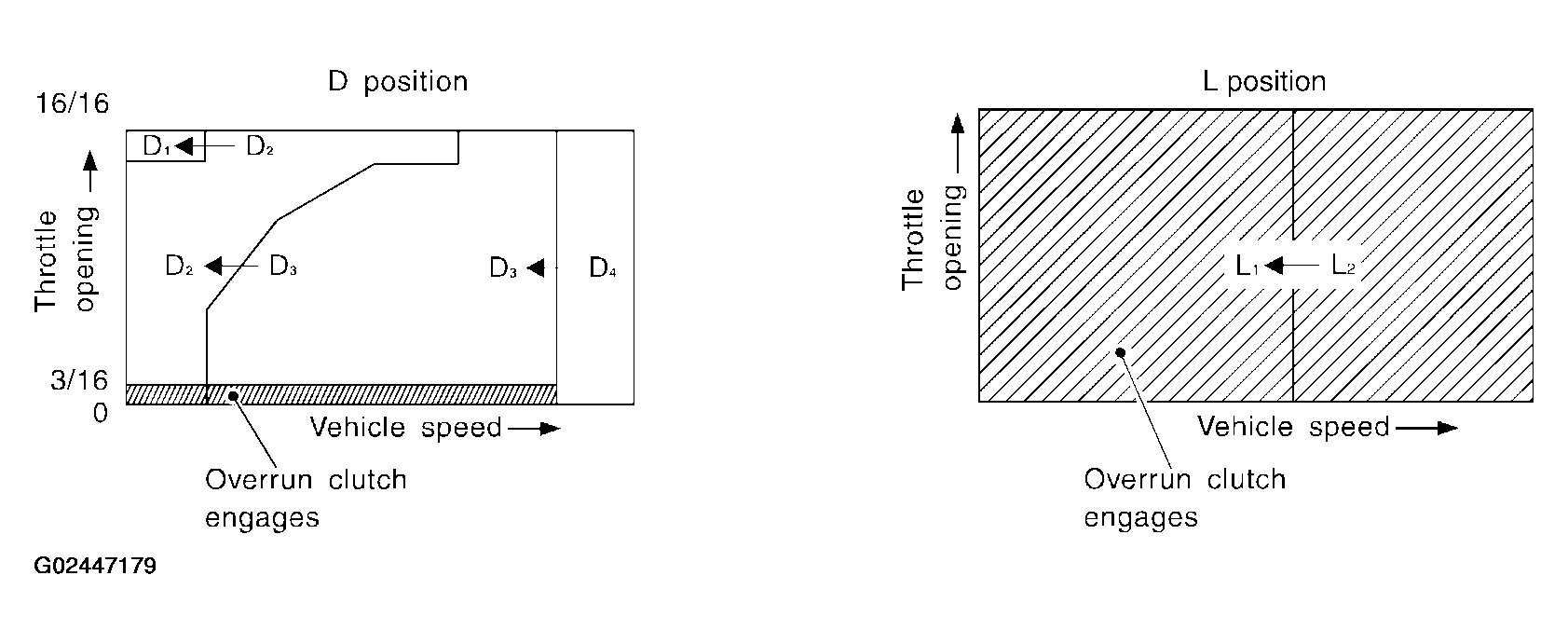

Fig 1: Identifying Overrun Clutch Operating Conditions
G02447179Courtesy of NISSAN MOTOR CO., U.S.A.
GEAR POSITION SPECIFICATION TABLE

Selector lever position Gear position Throttle opening
D position D1, D2, D3 gear position Less than 3/16
L position L1, L2 gear position At any position
