5 A/T Models

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

When installing the transaxle to the engine, use the specified tightening torque in the numerical sequence as shown.

Fig 1: 5 A/T Model Tightening Torque Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

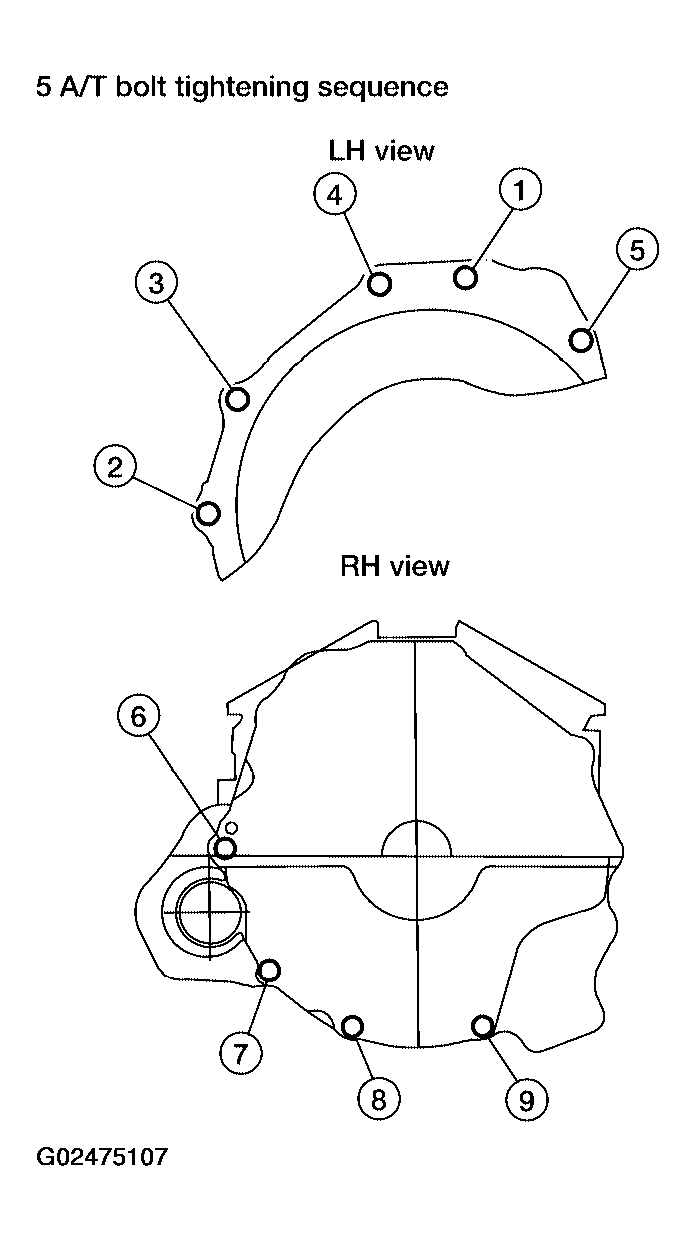

Fig 2: Identifying 5 A/T Bolt Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Install converter to drive plate bolts.
- Converter to drive plate bolts 4 A/T: 51 N.m (5.2 kg-m, 38 ft-lb)
- Converter to drive plate bolts 5 A/T: 54 N.m (5.5 kg-m, 40 ft-lb)
NOTE: With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.
Install rear cover plate.
- Rear cover plate bolt: 6.91 N.m (0.70 kg-m, 61 in-lb)
Install crankshaft position sensor (POS).
- Crankshaft position sensor (POS) bolt: 9.6 N.m (0.98 kg-m, 85 in-lb)
Tighten the front suspension member nuts and bolts to specification. Refer to REMOVAL AND INSTALLATION .
Install the stabilizer bar bushings and clamps in the specified orientation. Refer to REMOVAL AND INSTALLATION - STABILIZER BAR BUSHINGS .
Tighten the stabilizer bar and connecting rod nuts and bolts to specification. Refer to COMPONENTS .
Tighten the steering gear bolts to specification. Refer to REMOVAL AND INSTALLATION - STEERING GEAR .
