Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil.

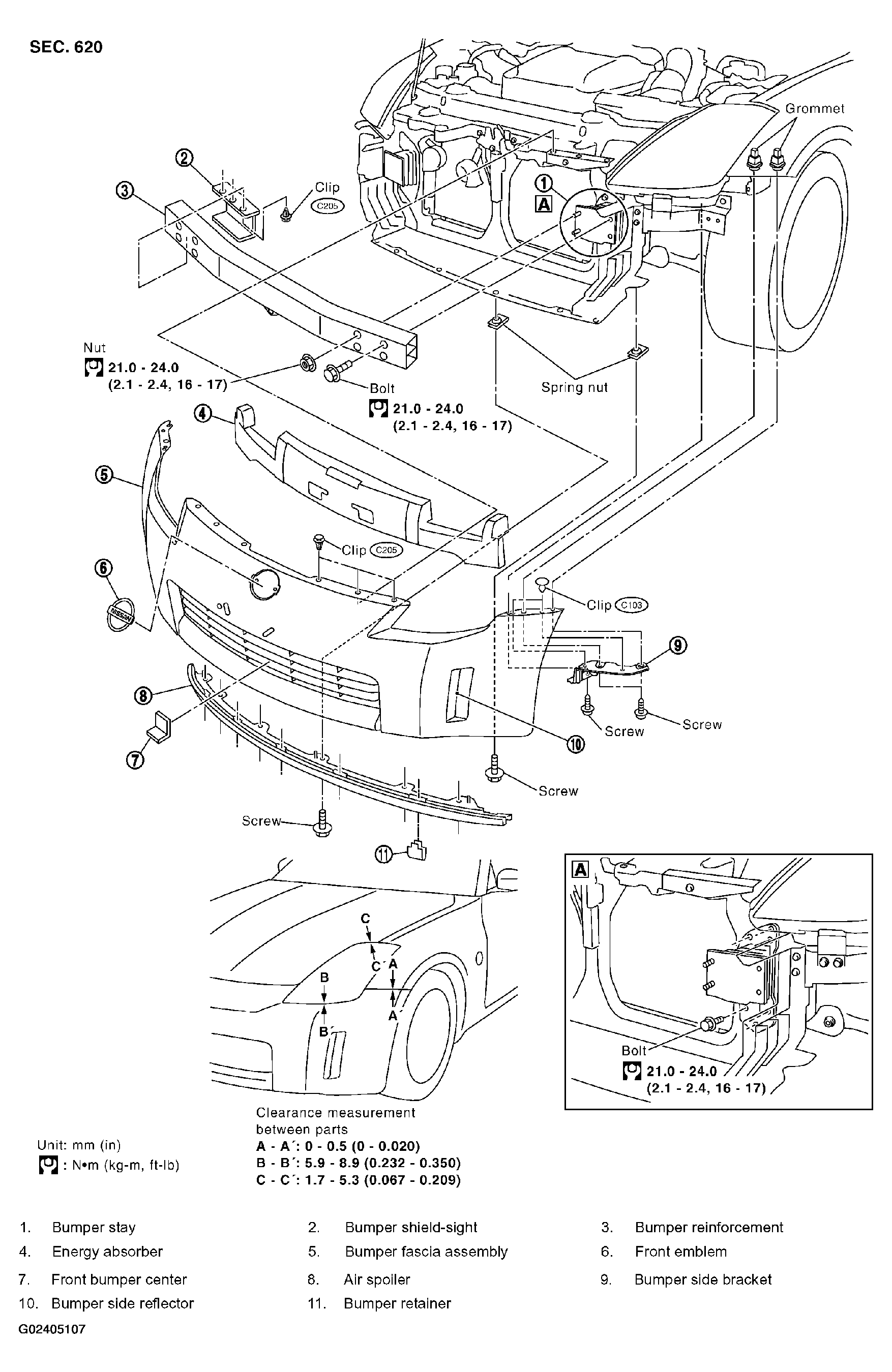

Fig 1: Exploded View Of Front Bumper With Torque Specifications
G02405107Courtesy of NISSAN MOTOR CO., U.S.A.
