Models Without VDC: Assembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Never use mineral oils such as kerosene, gasoline during the cleaning and assembly process.
  • Make sure there is no foreign matter such as dirt or dust attached to the inner cylinder walls, the piston, or the cap seal, and use care to avoid damaging parts with the assembly tools.
  • Do not drop parts. If a part is dropped, do not use it.
  1. Apply fluid to cylinder inner wall body and contact surface of the piston assembly. Then insert secondary piston assembly and primary piston assembly into cylinder body in this order.
    CAUTION:
    • Do not reuse the primary and secondary piston assemblies.
    • Be sure to replace the assembly without disassembling the new inner kit.
    • Pay attention to the orientation of the piston cup, and insert straight to prevent the cup from being caught by cylinder inner wall.

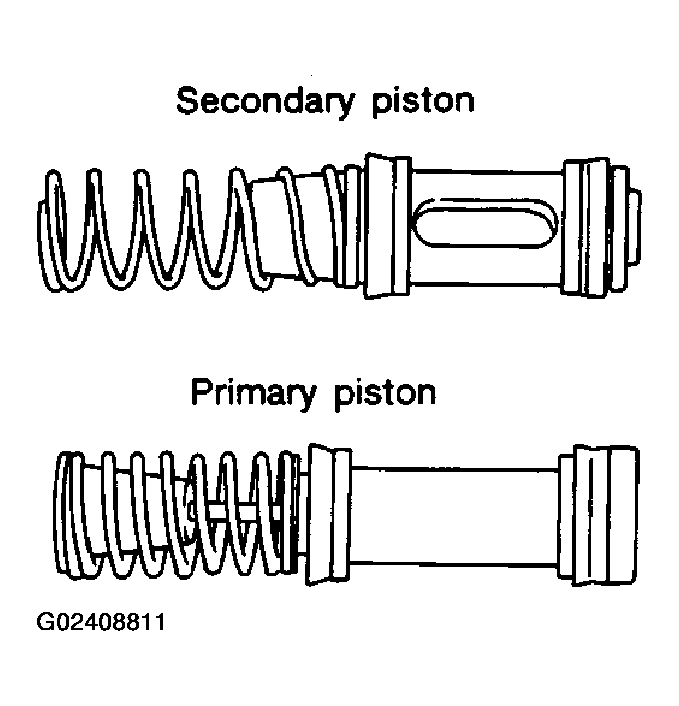

    Fig 1: Secondary Piston & Primary Piston
    G02408811Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Perform a visual inspection of the secondary piston slit through the tank boss hole on the secondary side of the cylinder body, and attach the piston stopper.
    Fig 2: Inspecting Secondary Piston
    G02408812Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Holding down the piston with the stopper cap, push the stopper cap tabs so they are firmly into the cylinder grooves, then attach the stopper cap.
    Fig 3: Attaching Stopper Cap
    G02408813Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse the stopper cap.
  4. Apply brake fluid the grommet and attach to the cylinder body.
    CAUTION: Do not reuse the grommet.
  5. Attach the attachment in the inner kit to the reservoir cap as described in disassembly step 2.
    CAUTION: Make sure the attachment is pointing in the right direction.
  6. Master cylinder assembly is fixed in the vise as described in disassembly step 3.
  7. Using a pin punch [commercial service tool: diameter Approx. 4 mm (0.16 in)], attach the reservoir tank mounting pin so that the attachment side and the opposite side are identical.
    CAUTION: Do not reuse reservoir tank and mounting pin.

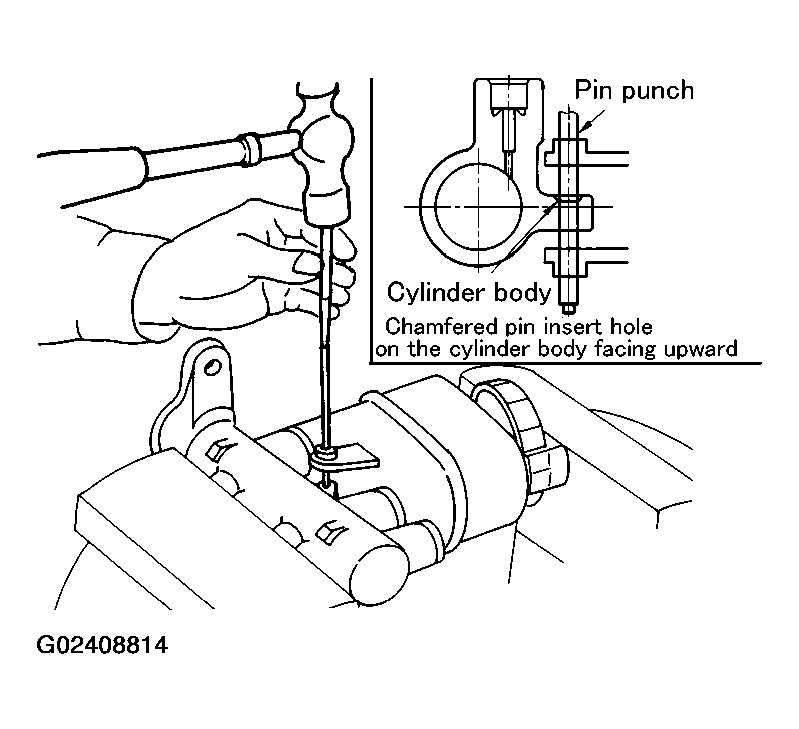

    Fig 4: Removing Master Cylinder Assembly From Vise
    G02408814Courtesy of NISSAN MOTOR CO., U.S.A.
