Section 1440 (Rear Axle)
>>
Wheel Hub
>>
Disassembly and Assembly
>>
Disassembly
>>
Bushing
Disassembly and Assembly: Disassembly: Bushing
WARNING:
This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
Using a suitable drift, remove each bushing from axle.

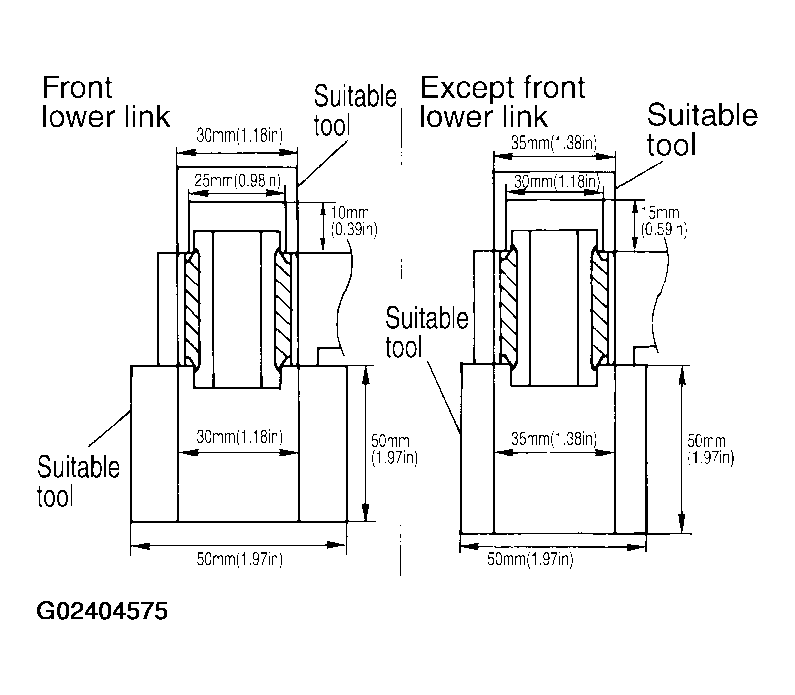

Fig 1: Removing Bushing From Axle
Courtesy of NISSAN MOTOR CO., U.S.A.
