WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
Data are reference value and are measured between each terminal and ground.

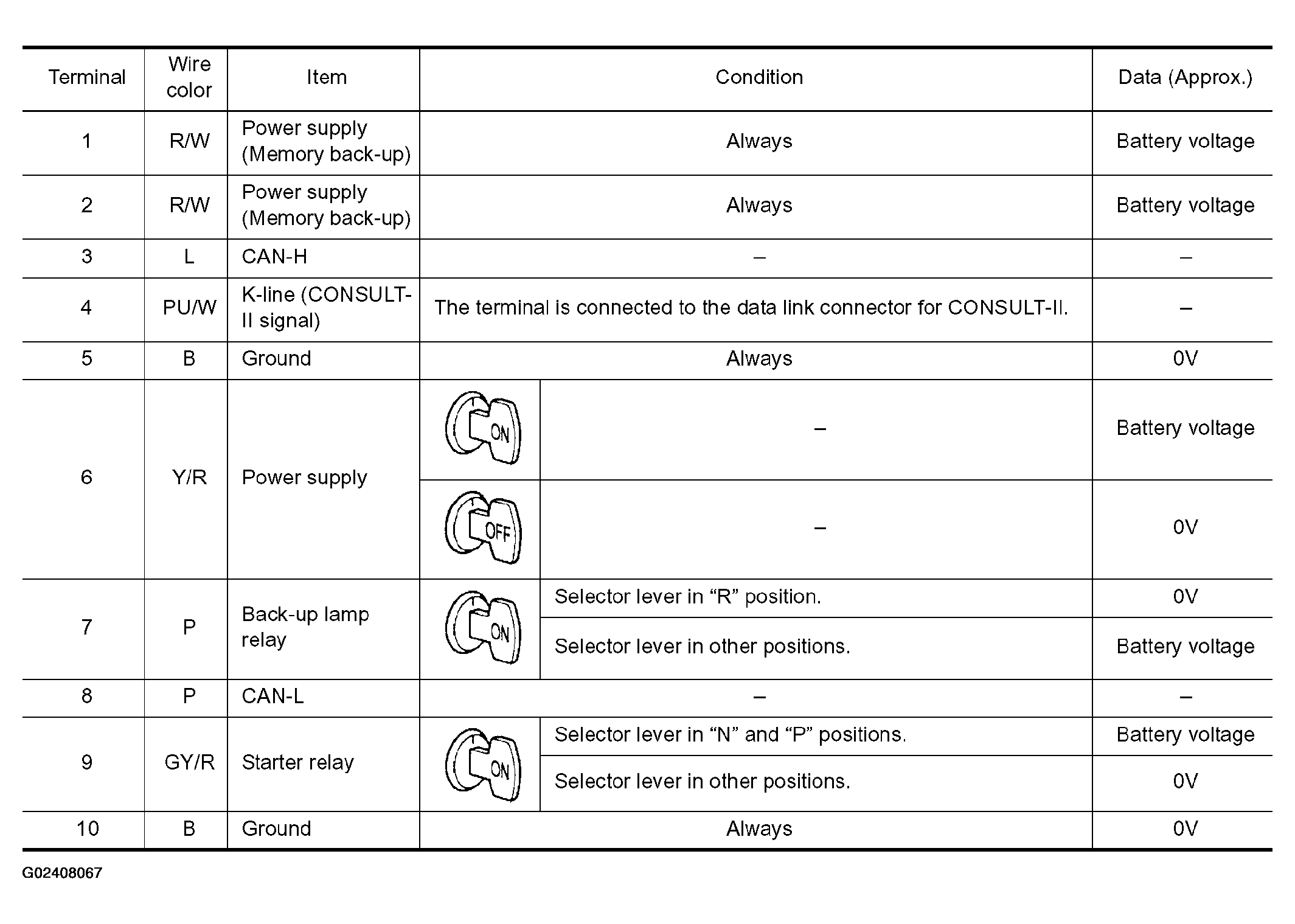

Fig 1: Data Reference Value Connector Terminal Chart
