Direct Clutch: Disassembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed screwdriver, remove snap ring from direct clutch drum.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.

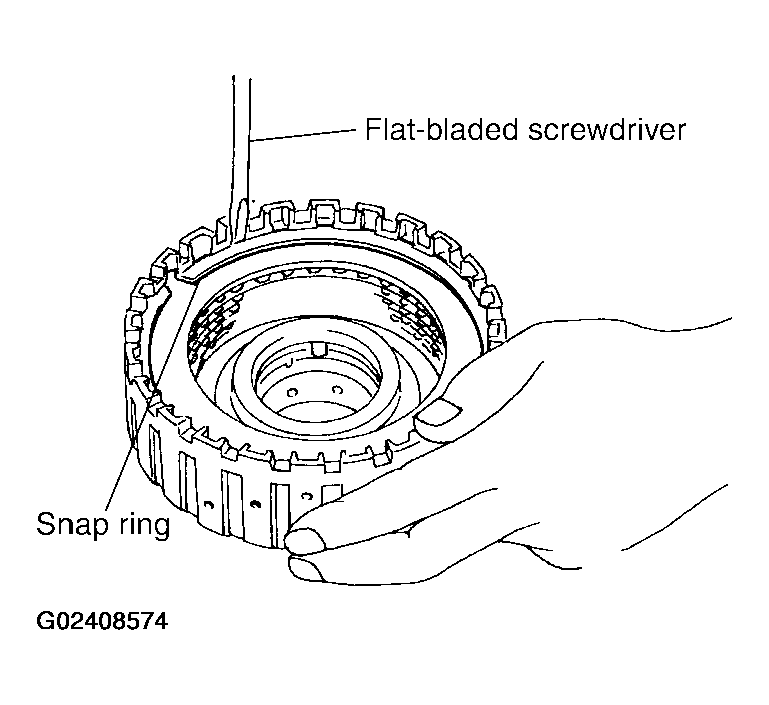

    Fig 1: Removing Snap Ring From Direct Clutch Drum
    G02408574Courtesy of NISSAN MOTOR CO., U.S.A.
