Shift Control

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

If the contact surface on striking lever, fork rod, shift fork, etc. has excessive wear, abrasion, bend, or any other damage, replace the components.

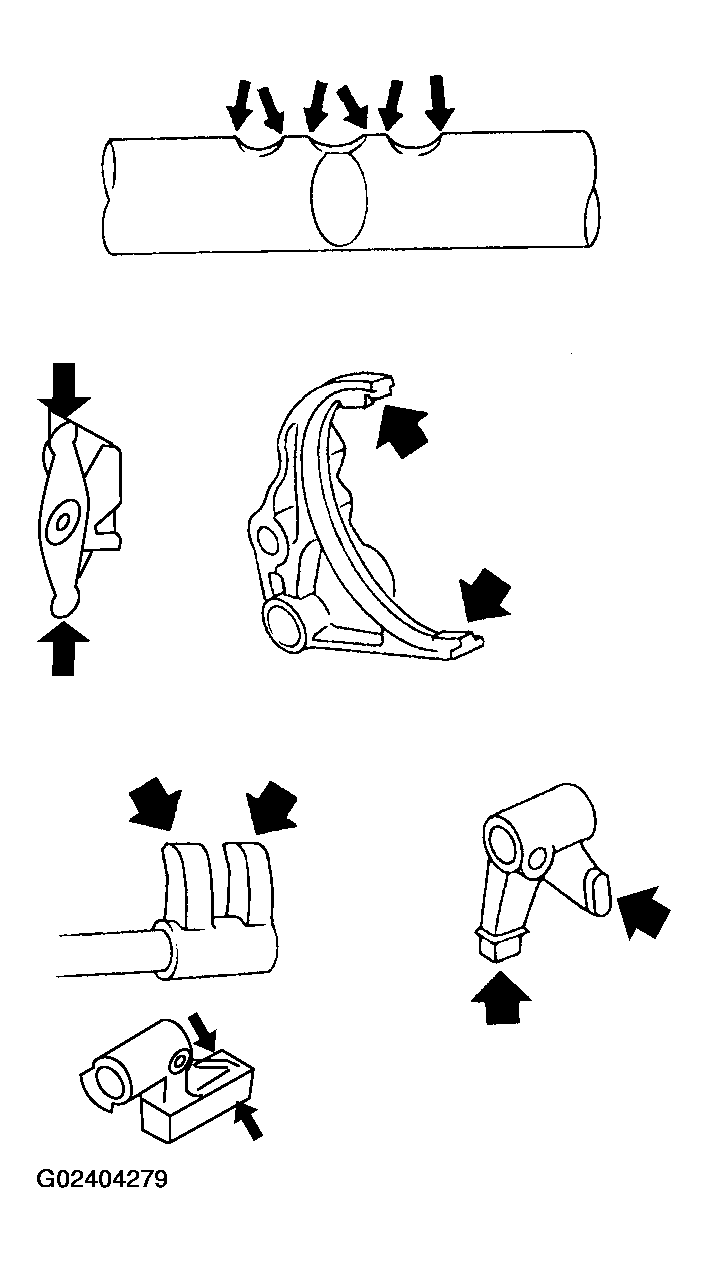

Fig 1: Inspecting Shift Control Components
G02404279Courtesy of NISSAN MOTOR CO., U.S.A.
