With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 60 seconds.
  4. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

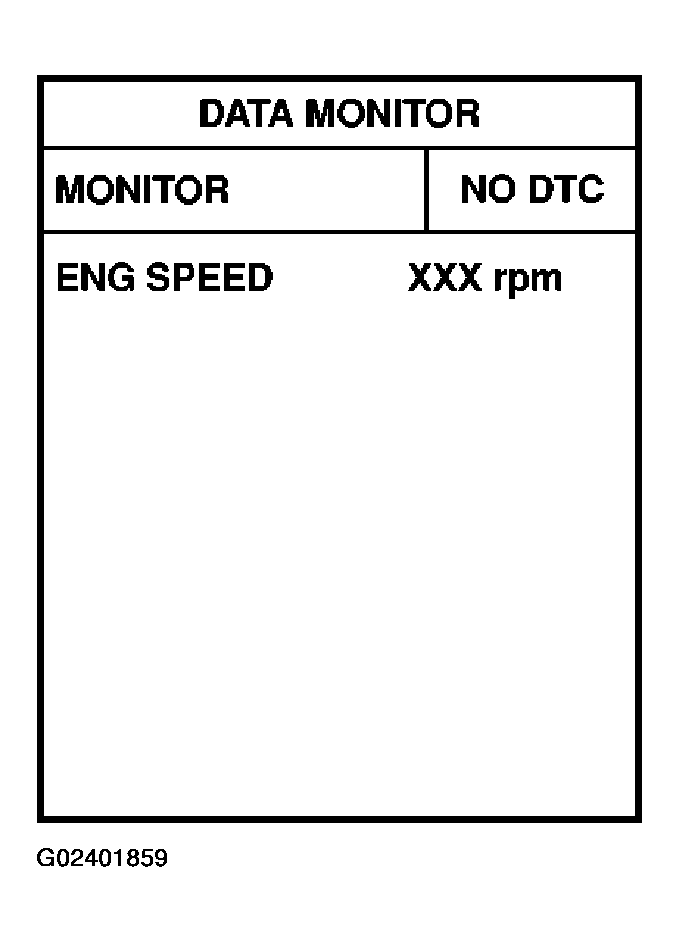

    Fig 1: Scan Tool Display "Data Monitor"
    G02401859Courtesy of NISSAN MOTOR CO., U.S.A.
