On Board Diagnosis Logic

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

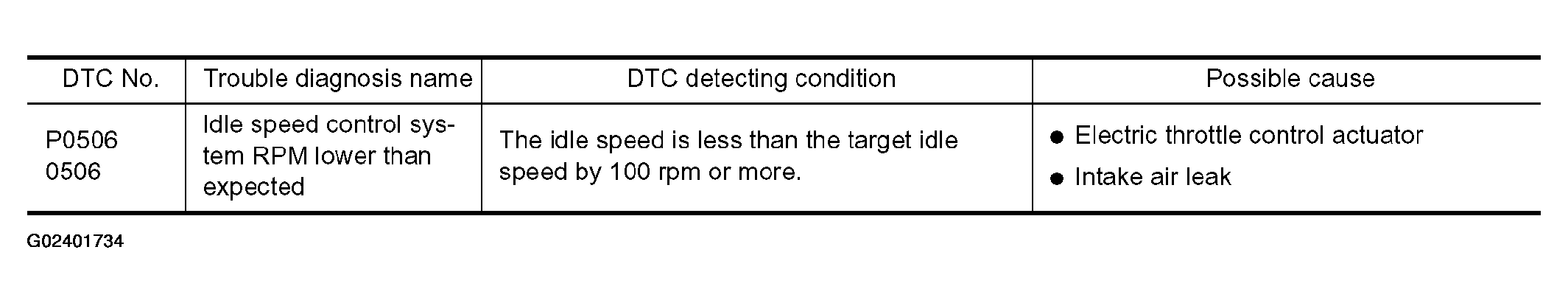

Fig 1: DTC P506 Detection Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
