DTC P0112, P0113: IAT Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

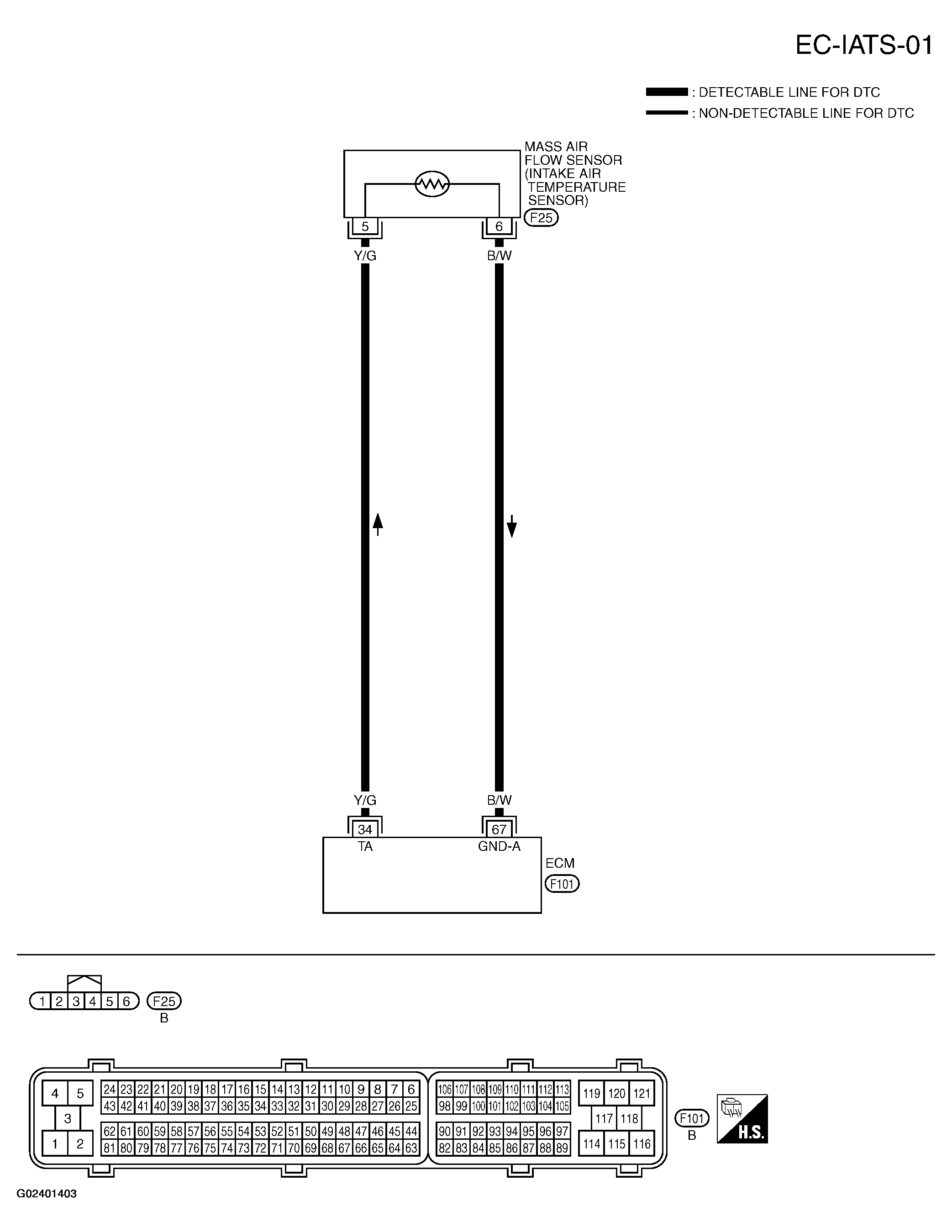

Fig 1: IAT Sensor Wiring Diagram - EC-IATS-01

Courtesy of NISSAN MOTOR CO., U.S.A.
