Operation Procedures

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system off.
While pressing the "MUTE/II " switch, turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
Display unit connection check screen.

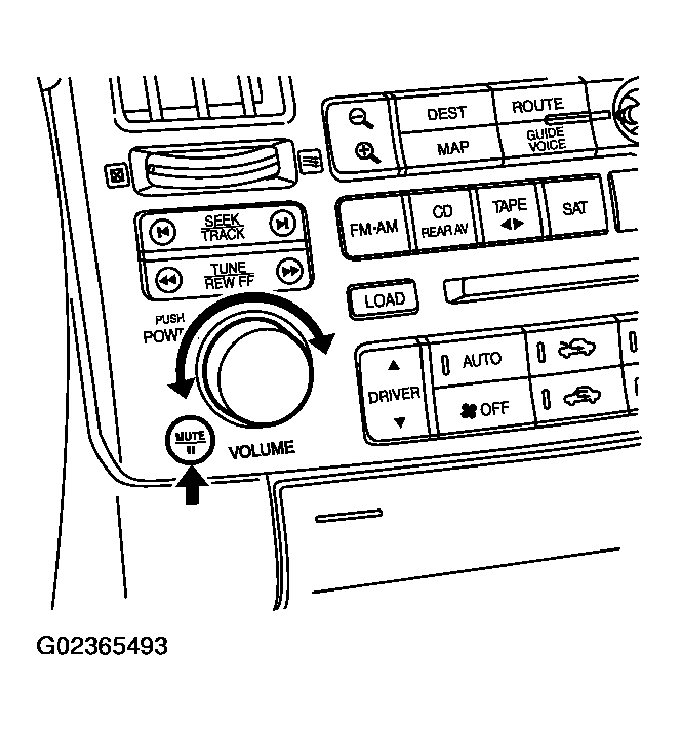

Fig 1: Locating Audio System Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Select each connecting unit (CHANGER, SATELLITE RADIO).

Fig 2: Identifying Display - Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
Self-diagnosis screen is displayed.
- Using the joystick, select each item, and perform diagnosis.
  CAUTION: If self-diagnosis cannot activated, refer to "TROUBLE DIAGNOSIS CHART BY SYMPTOM ".
Fig 3: Identifying Display - Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
