Audio Steering Wheel Switch Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK A/C AND AV SWITCH SELF-DIAGNOSIS FUNCTION
1. Start A/C and AV switch self-diagnosis function. Refer to "A/C AND AV SWITCH SELF-DIAGNOSIS FUNCTION ".
2. Operate audio steering wheel switch.
Does audio steering wheel switch operate normally?
1. YES : INSPECTION END
2. NO : GO TO 2.
CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/C and AV switch connector and spiral cable connector.
3. Check continuity between spiral cable harness connector terminals and A/C and AV switch harness connector terminals.

  Fig 1: Checking Continuity Between Spiral Cable Harness Connector Terminals And A/C And AV Switch Harness Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Terminal Continuity Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between A/C and AV switch and ground.
Fig 3: Terminal Continuity Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 3.
2. NG : Repair harness or connector.
CHECK SPIRAL CABLE
1. Disconnect spiral cable connector (Audio steering wheel switch harness side).
2. Check continuity between spiral cable connector terminal 24, 31, 32 and terminal 20, 17, 16.
Fig 4: Checking Continuity Between Spiral Cable Connector Terminal 24, 31, 32 And Terminal 20, 17, 16
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Terminal Continuity Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 4.
2. NG : Replace spiral cable.
CHECK AUDIO STEERING WHEEL SWITCH RESISTANCE
Check resistance audio steering wheel switch terminals.

Fig 6: Checking Resistance Audio Steering Wheel Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

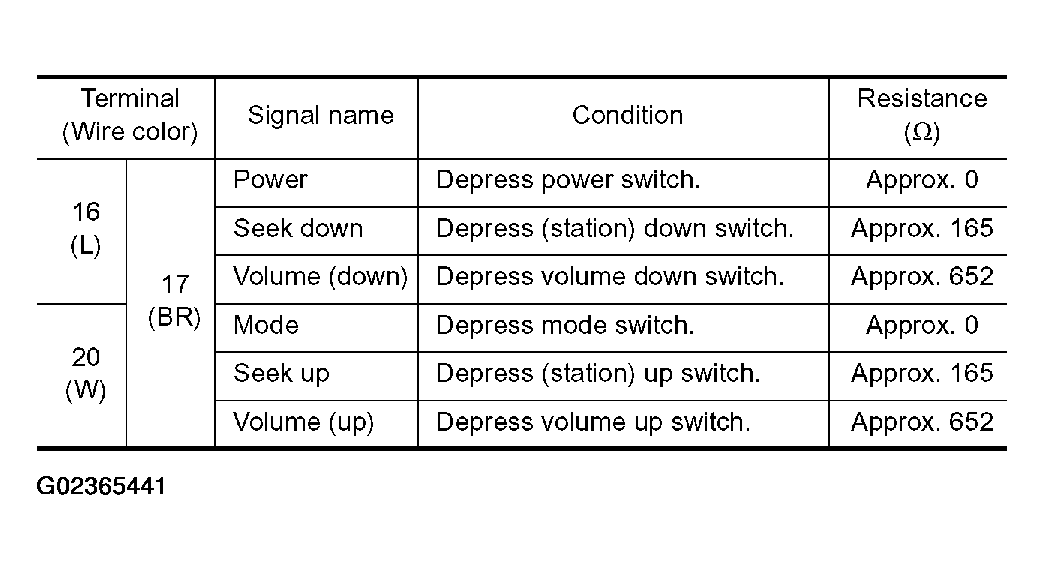

Fig 7: Terminal Resistance Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : INSPECTION END
2. NG : Replace audio steering wheel switch.
