Check Element

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

Fig 1: Attaching Probe Circuit Tester To Antenna Terminal On Each Side
Courtesy of NISSAN MOTOR CO., U.S.A.
- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger.
Fig 2: Identifying Tin Foil
Courtesy of NISSAN MOTOR CO., U.S.A.
If an element is broken, no continuity will exist.

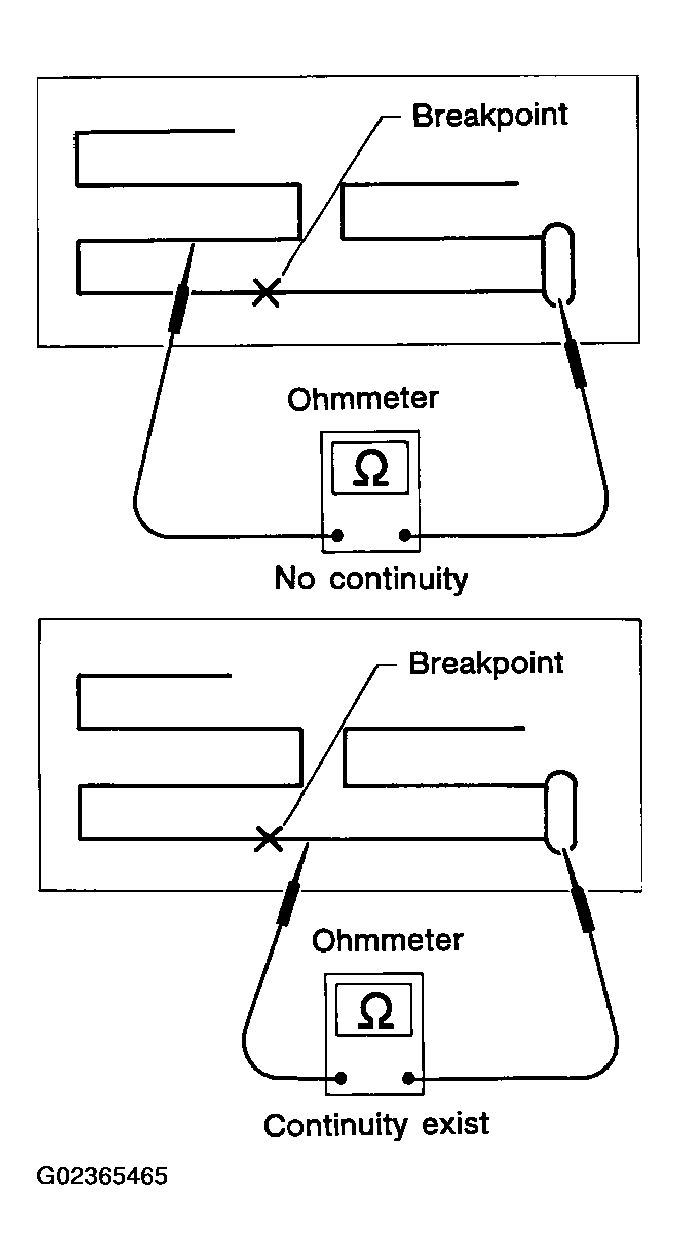

Fig 3: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
To locate a break, move probe along element. Tester needle will swing abruptly when probe passes the broken point.

Fig 4: Identifying Broken Point
Courtesy of NISSAN MOTOR CO., U.S.A.
