A/T Indicator Is Malfunction

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to "OPERATION PROCEDURE ".

Are all segments displayed?
1. YES: GO TO 2.
2. NO: Replace combination meter.
Fig 1: Combination Meter Self-Diagnosis Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SELF-DIAGNOSIS RESULTS OF UNIFIED METER AND A/C AMP.
Select "METER A/C AMP" on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to "CONSULT-II FUNCTION (METER A/C AMP) ".

Self-diagnostic results content
1. No malfunction detected: GO TO 3.
2. Malfunction detected: Go to "SYMPTOM CHART 2 " in "COMBINATION METER".
CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use "DATA MONITOR" of "METER A/C AMP" on CONSULT-II. Confirm each indication on the monitor when operating the shift lever.

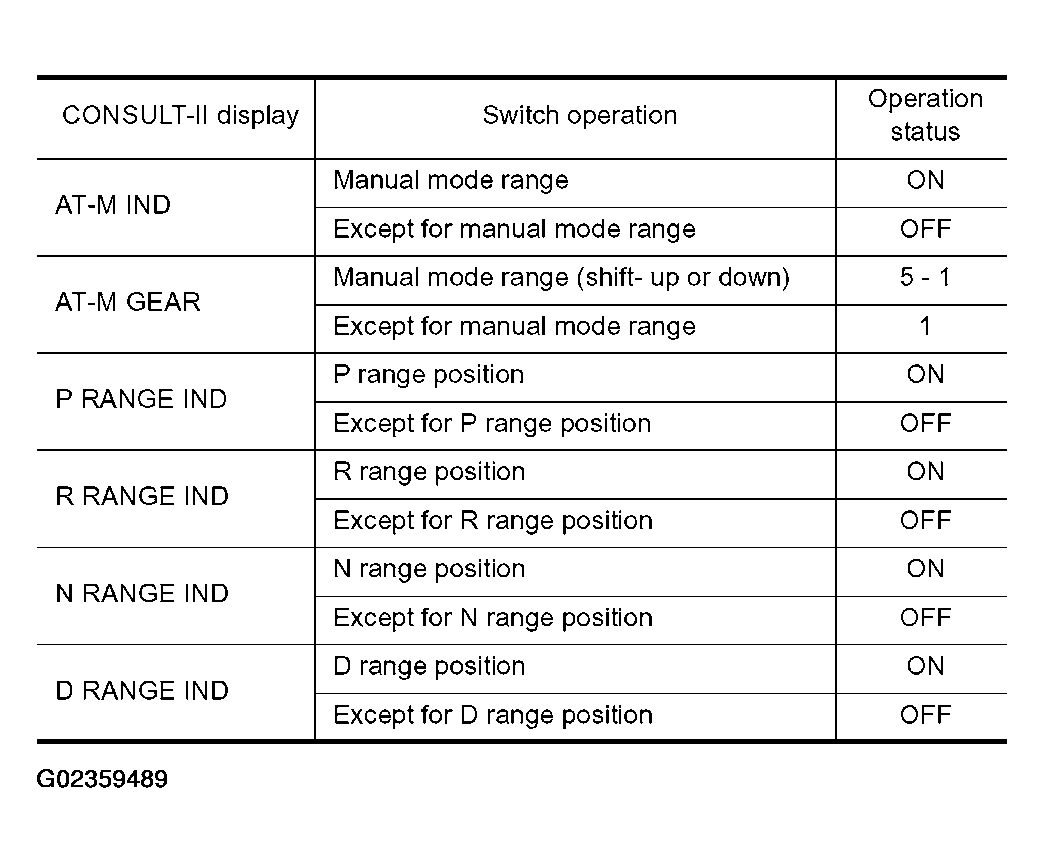

Fig 2: CONSULT-II Display Switch Operation Table
Courtesy of NISSAN MOTOR CO., U.S.A.

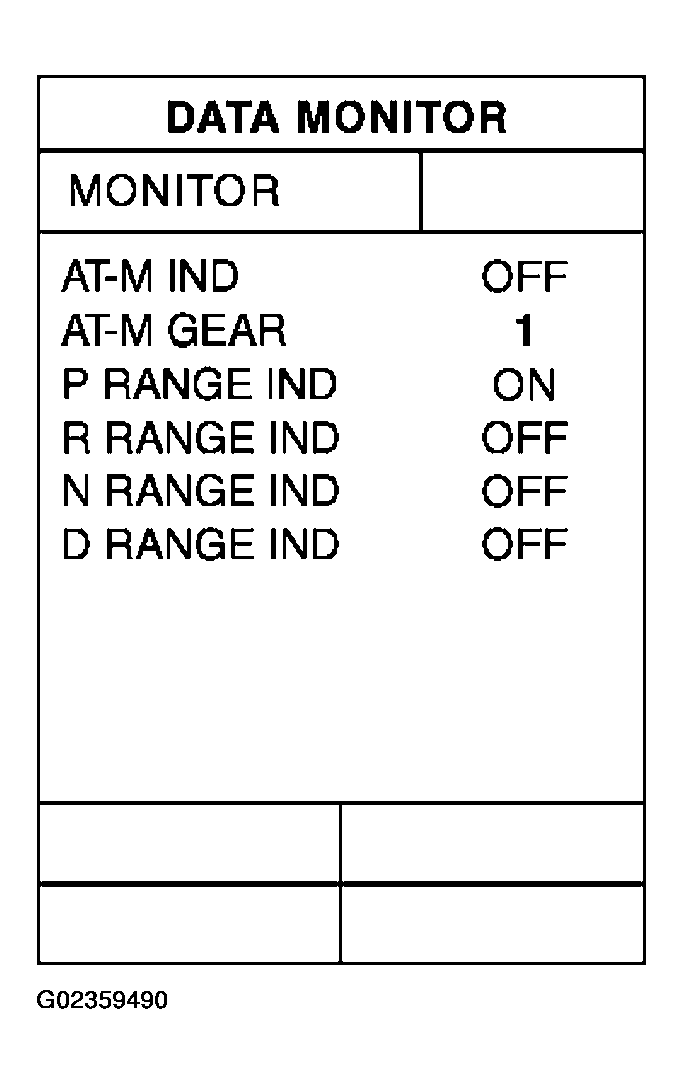

Fig 3: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace combination meter.
2. NG: GO TO 4.
CHECK A/T DEVICE
Perform A/T device inspection. Refer to "DTC P1815 MANUAL MODE SWITCH ".

OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace applicable parts.
CHECK TCM
Check TCM input/output signal. Refer to "TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES ".

OK or NG
1. OK: Replace unified meter and A/C amp. Refer to "REMOVAL AND INSTALLATION OF UNIFIED METER AND A/C AMP. ".
2. NG: Check applicable part, and repair or replace corresponding parts.
