Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
- Remove low-pressure pipe 2 and high-pressure pipe 3. Refer to
"REMOVAL AND INSTALLATION OF LOW-PRESSURE PIPE 2 AND HIGH-PRESSURE PIPE 3 ".CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

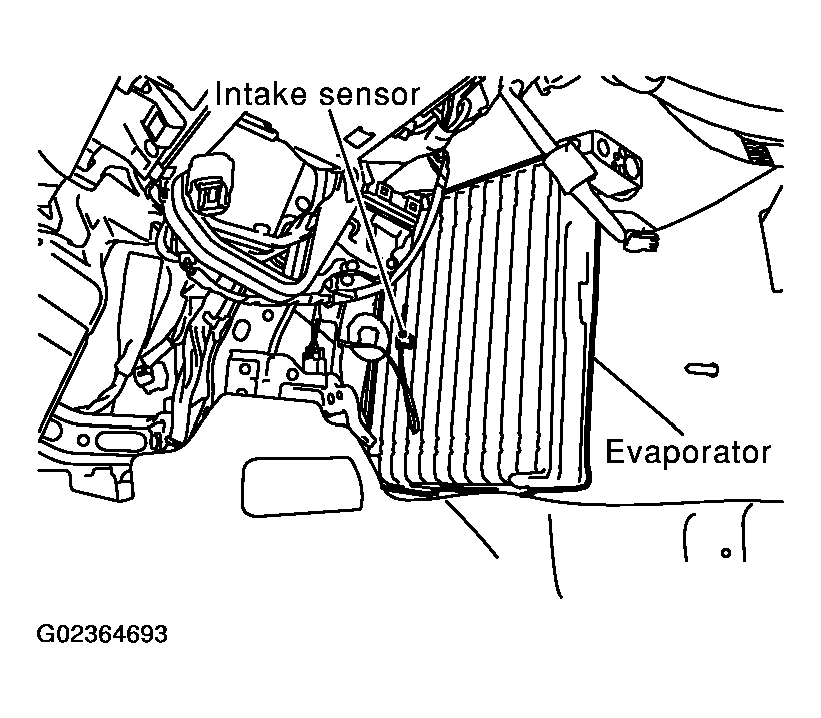

- Slide the evaporator to passenger side, and then remove the intake sensor.
