Instrument Passenger Lower Panel: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the damper from glove box assembly right side.
  2. Remove glove box pins and remove glove box assembly.

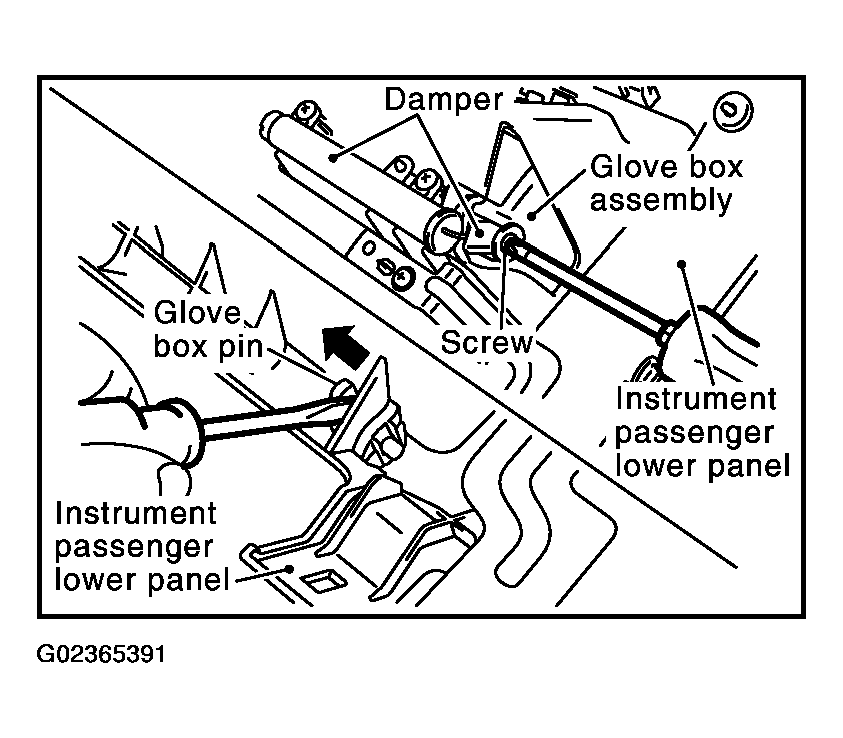

    Fig 1: Removing Glove Box Assembly
    G02365391Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws with power tool and remove glove box striker.

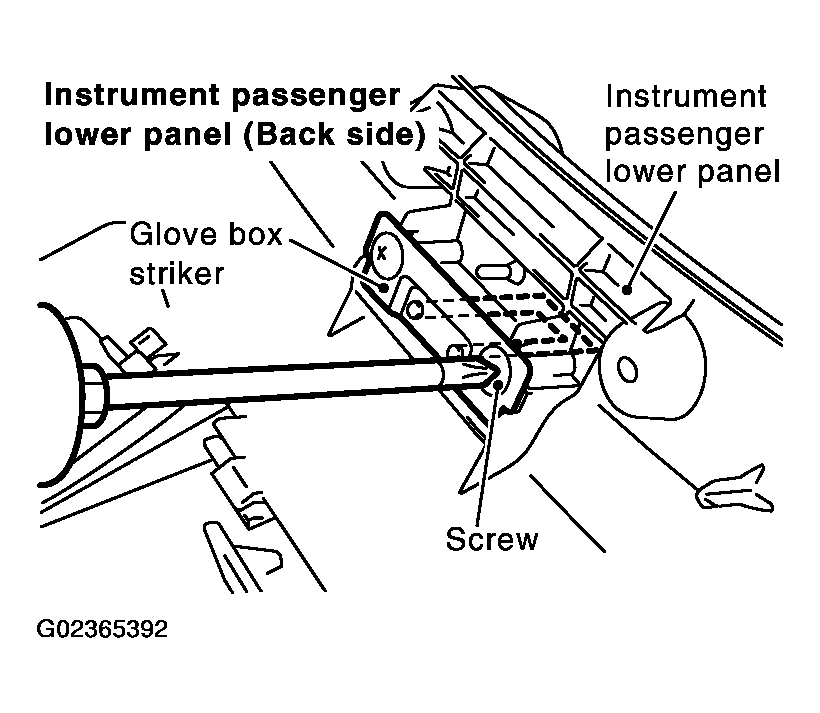

    Fig 2: Removing Glove Box Striker
    G02365392Courtesy of NISSAN MOTOR CO., U.S.A.
