Active Test

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Operation Procedure

Touch "FLASHER" on "SELECT TEST ITEM" screen.
Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
Touch item to be tested and check operation of the selected item. See Fig 1 .
During the operation check, touching "BACK" deactivates the operation.

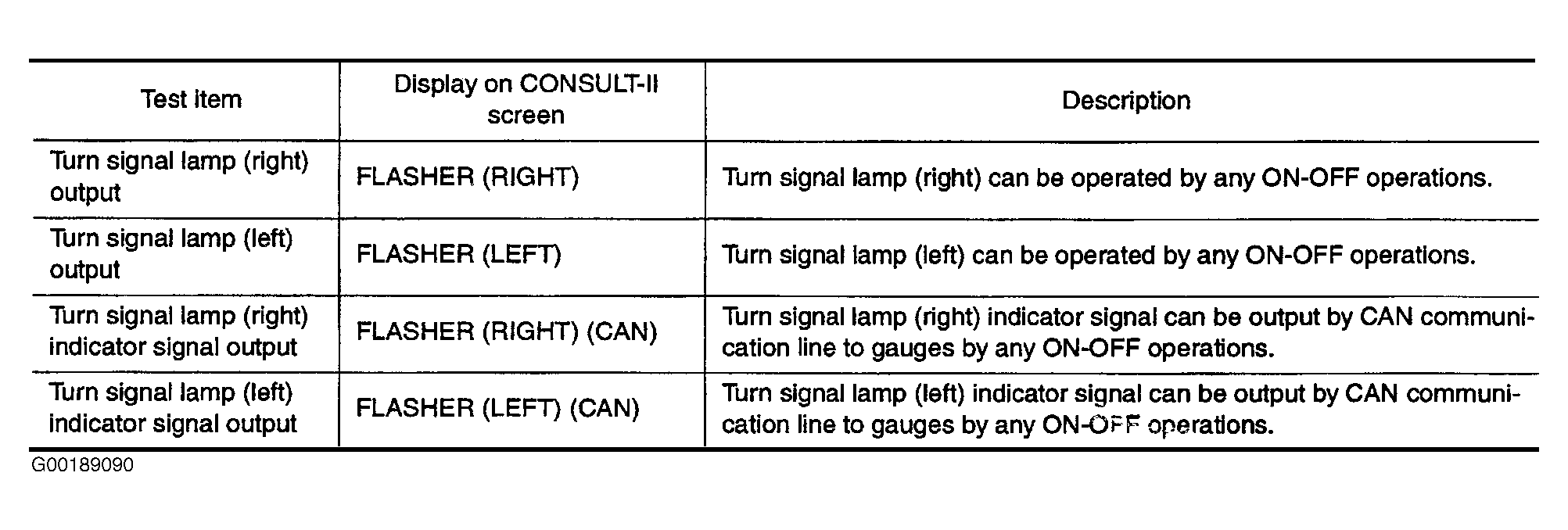

Fig 1: Identifying Active Test Items (Combination Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.
