Active Test

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
ACTIVE TEST DESCRIPTION

Test Item Description
FLASHER This test is able to check right hazard reminder operation. The right hazard lamp turns on when "ON" on CONSULT-II screen is touched.
POWER WINDOW DOWN This test is able to check power window open operation. The front power windows activate for 10 seconds after "ON" on CONSULT-II screen is touched.

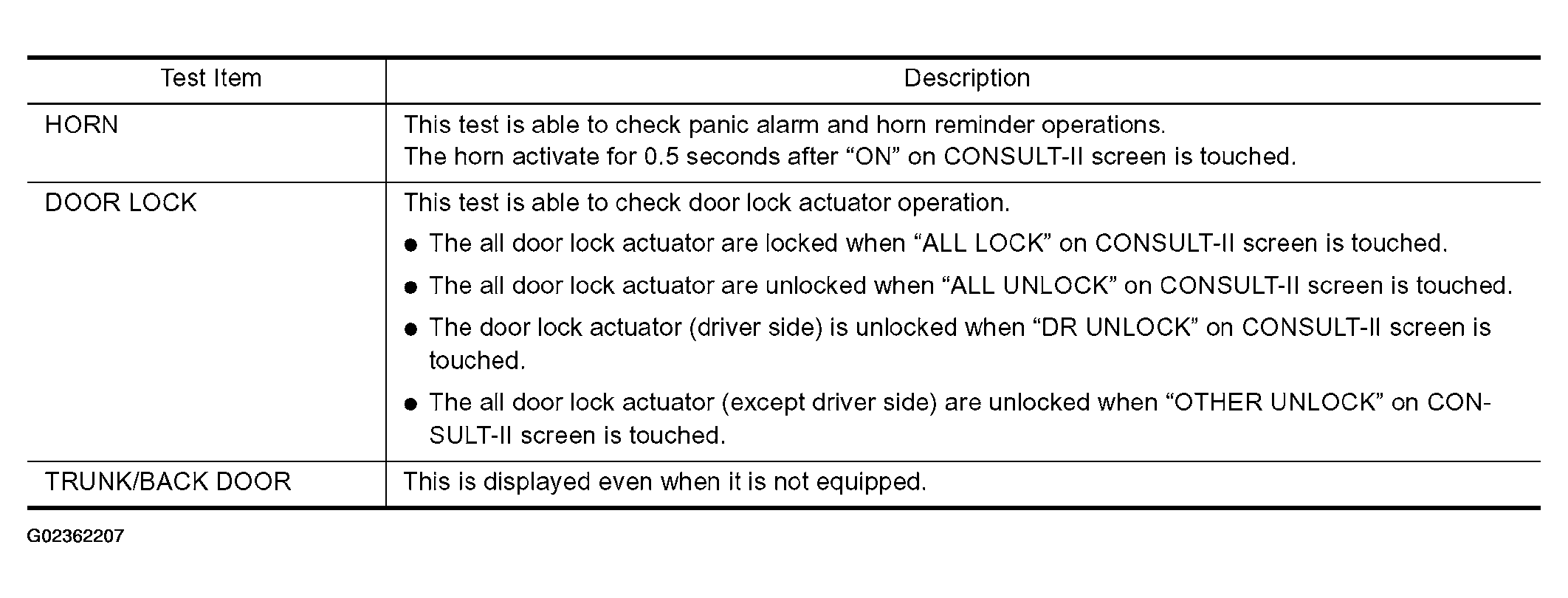

Fig 1: Test Item Description
G02362207Courtesy of NISSAN MOTOR CO., U.S.A.
