Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

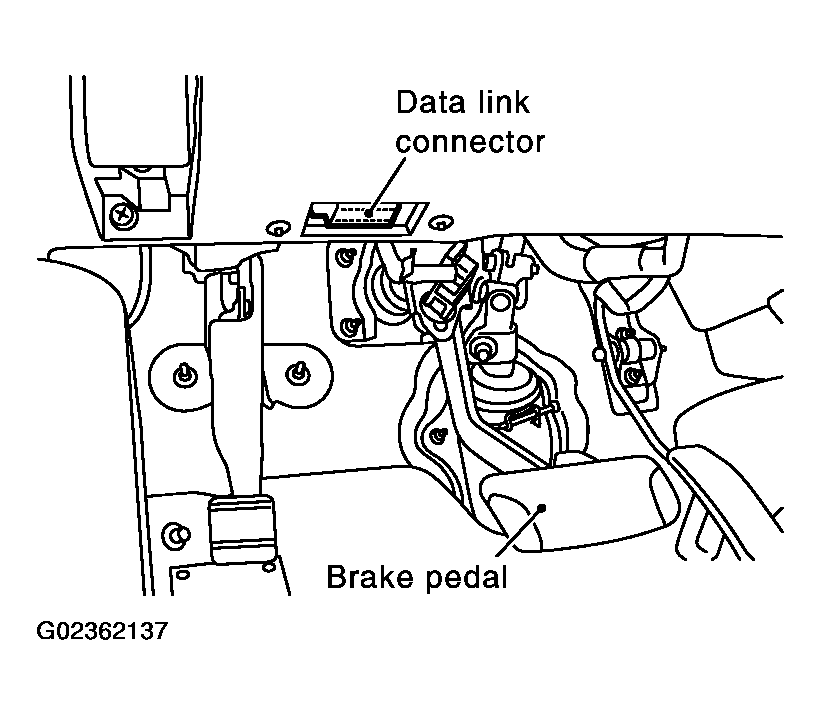

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying "START (NISSAN BASED VHCL)" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Displaying "BCM" On "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DOOR LOCK".

Fig 4: Displaying "DOOR LOCK" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"WORK SUPPORT", "DATA MONITOR" and "ACTIVE TEST" are available.

Fig 5: Displaying "WORK SUPPORT", "DATA MONITOR" and "ACTIVE TEST" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
