Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set vehicle to the straight ahead-direction.
  2. Remove driver air bag module from steering wheel. Refer to "DRIVER AIR BAG MODULE ".
  3. Disconnect steering switch connector, remove steering wheel lock nut, then remove steering wheel. Refer to "SPIRAL CABLE ".
  4. Remove steering column cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  5. Remove combination switch & spiral cable from steering column assembly. Refer to "SPIRAL CABLE ".
  6. Remove instrument lower panel (driver side). Refer to "INSTRUMENT PANEL ASSEMBLY ".
  7. Remove combination meter. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  8. Remove fixing bolts of knee protector, then remove knee protector from vehicle.
  9. Disconnect harness connector from each switch on steering column shaft, then separate vehicle side harness from it.

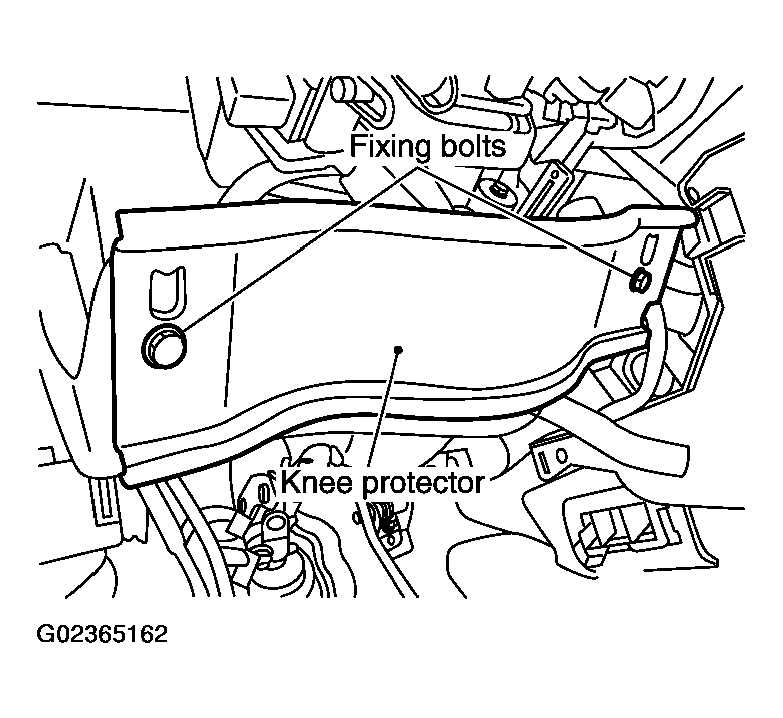

    Fig 1: Removing Fixing Bolts Of Knee Protector
    G02365162Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove lock nut and bolt, then separate lower shaft from upper joint of steering column assembly.

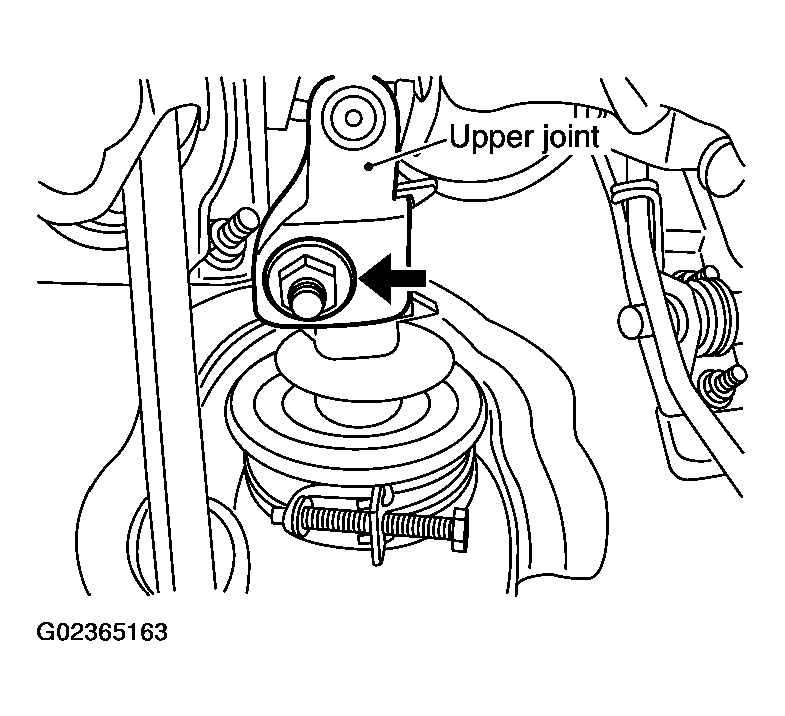

    Fig 2: Removing Lock Nut And Bolt
    G02365163Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove fixing bolts and nuts from steering member, remove steering column assembly from steering member.
  12. Remove hole cover seal and clamp.
  13. Remove mounting nuts, then remove hole cover from panel.

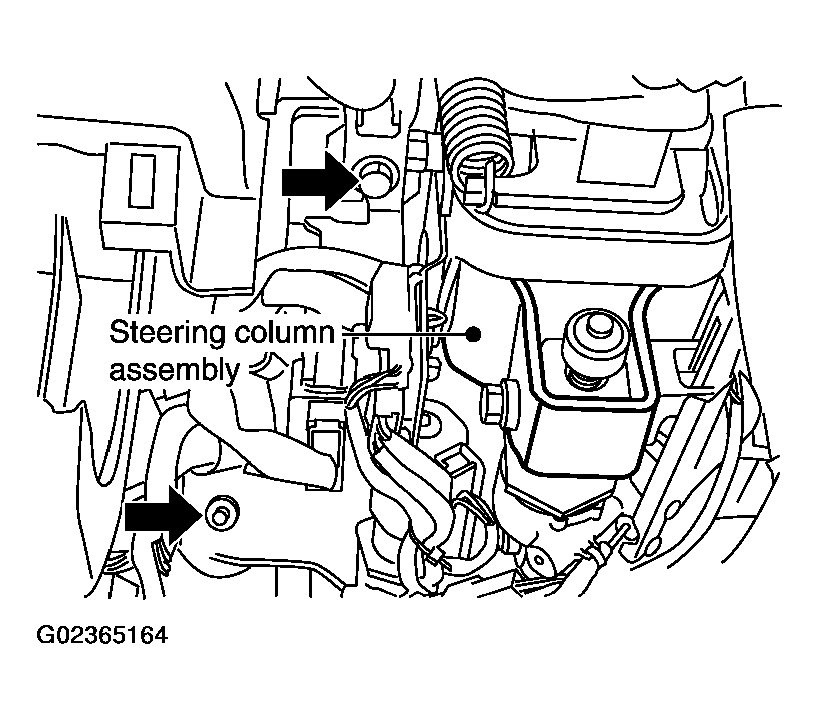

    Fig 3: Removing Steering Column Assembly From Steering Member
    G02365164Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Raise vehicle, then remove mounting bolts of lower joint.
  15. Remove lower joint and lower shaft from vehicle.

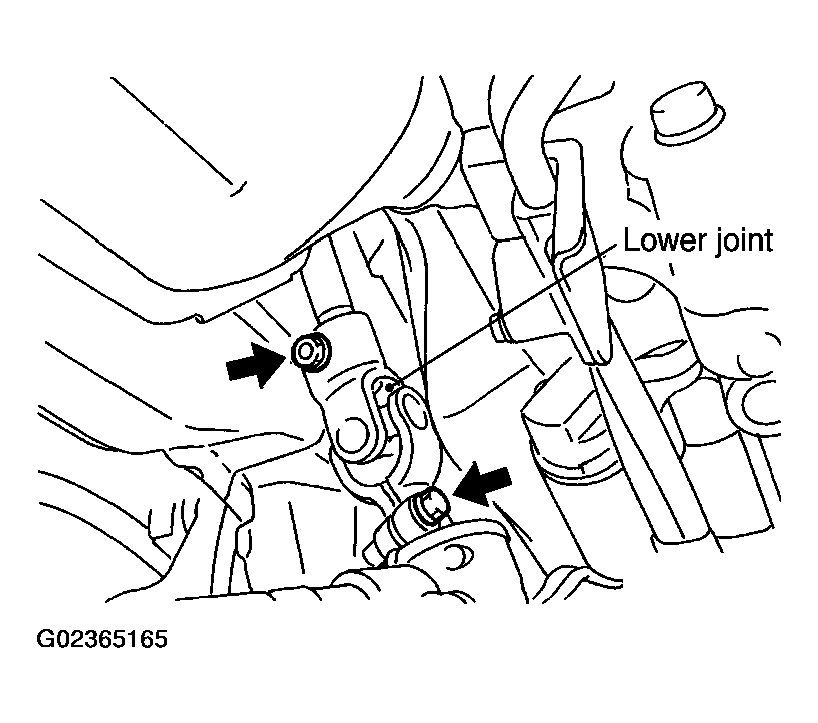

    Fig 4: Removing Lower Joint And Lower Shaft From Vehicle
    G02365165Courtesy of NISSAN MOTOR CO., U.S.A.
