Passenger Side Power Window Motor Circuit Check

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

Turn ignition switch ON.

Check voltage between power window sub-switch connector and ground.

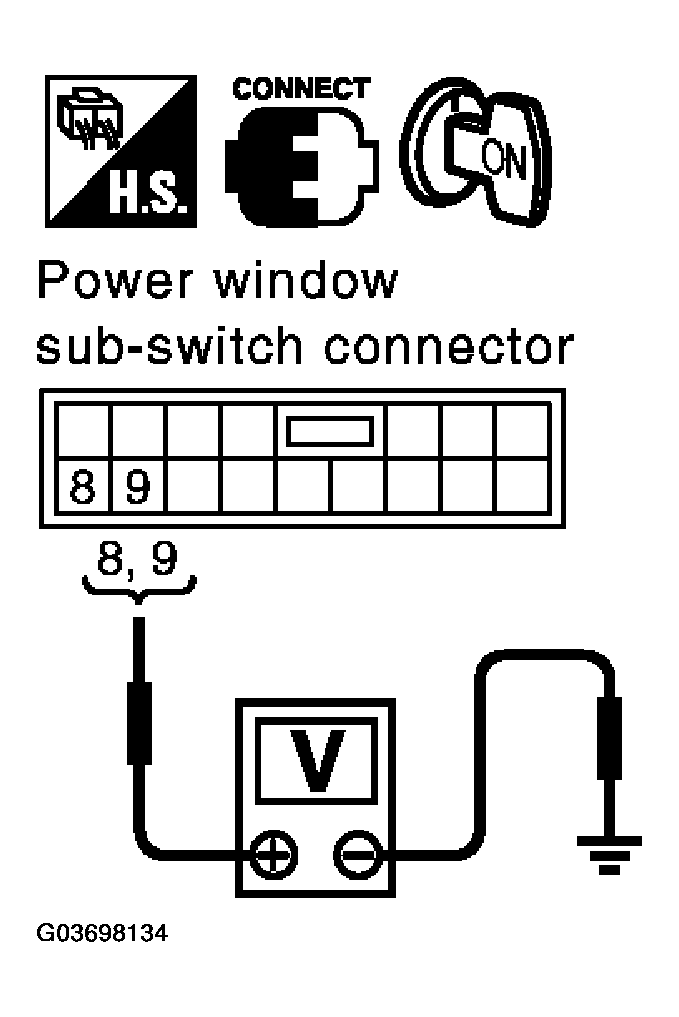

Fig 1: Checking Voltage Between Terminal 8, 9 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE CHART

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D43	8 (L)	Ground	Closing	Battery voltage
	8 (L)		Opening	0
	9 (G)		Closing	0
	9 (G)		Opening	Battery voltage

OK or NG

OK: GO TO 2 .
NG: Replace power window sub-switch.

CHECK POWER WINDOW MOTOR (PASSENGER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch and passenger side power window motor connector.
3. Check continuity between power window sub-switch connector D43 terminals 8, 9 and passenger side power window motor connector D38 terminals 1, 2.

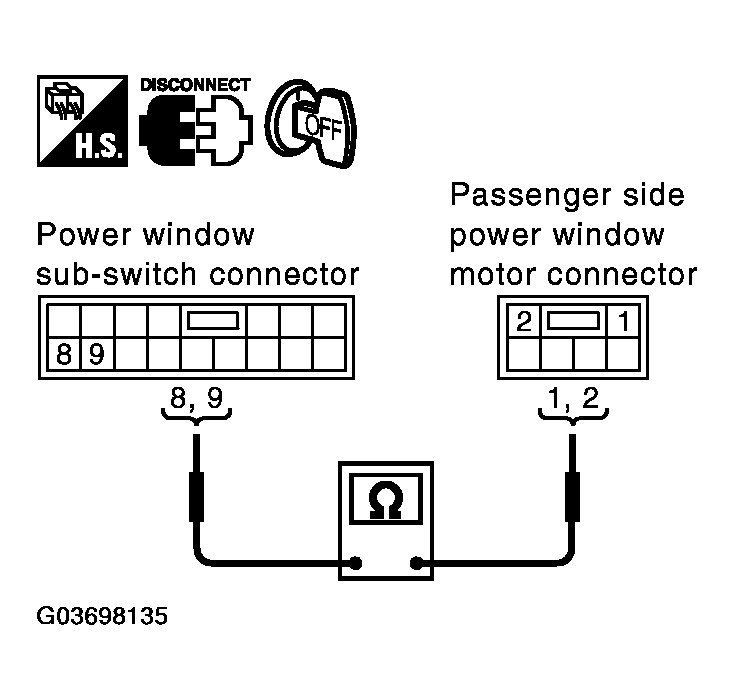

  Fig 2: Checking Continuity Between Terminals 8, 9 & Terminals 1, 2
  Courtesy of NISSAN MOTOR CO., U.S.A.

  9 (G) - 1 (G): Continuity should exist.

  8 (L) - 2 (L): Continuity should exist .
OK or NG
1. OK: Replace passenger side power window motor.
2. NG: Repair or replace harness between power window subswitch and passenger side power window motor.
