Door Key Cylinder Switch Check

With CONSULT-II

Check door key cylinder switch ("KEY CYL LK-SW", "KEY CYL UN-SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT-II. Refer to WORK SUPPORT

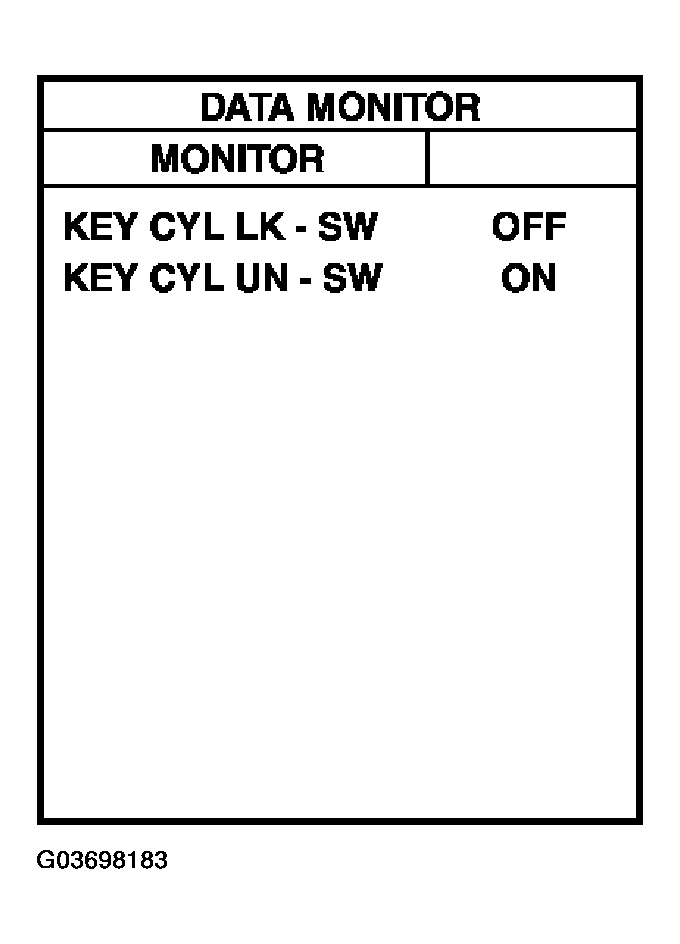

Fig 1: Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between power window main switch (door lock and unlock switch) connector and ground.

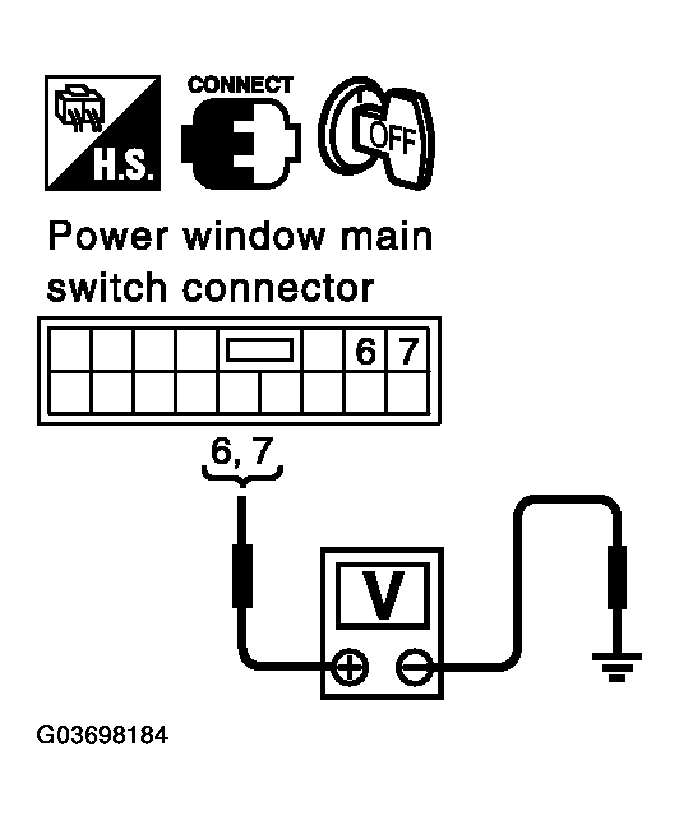

Fig 2: Checking Voltage Between Terminal 6, 7 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to SYMPTOM CHART  .
2. NG: GO TO  2 .

1. Turn ignition switch OFF.
2. Disconnect power window main switch (door lock and unlock switch) and door key cylinder switch connector.
3. Check continuity between power window main switch (door lock and unlock switch) connector D7 terminal 6, 7 and door key cylinder switch connector D15 terminals 1, 6.

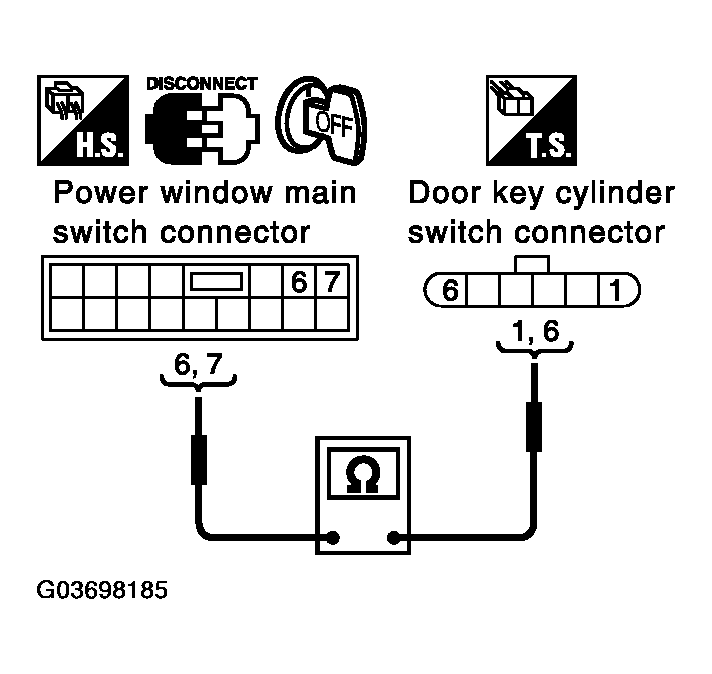

   Fig 3: Checking Continuity Between Terminal 6, 7 & Terminals 1, 6

   Courtesy of NISSAN MOTOR CO., U.S.A.

   6 (Y) - 1 (Y): Continuity should exist.

   7 (SB) - 6 (SB): Continuity should exist  .

OK or NG

1. OK: GO TO  3 .
2. NG: Repair or replace harness between power window main switch and door key cylinder switch.

Check continuity between door key cylinder switch connector D15 terminal 5 and ground.

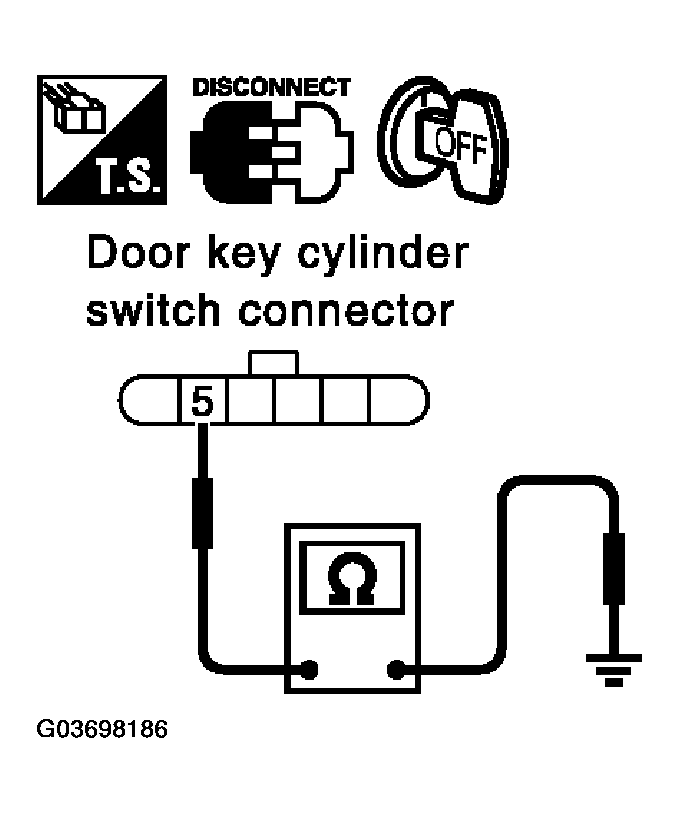

Fig 4: Checking Continuity Between Terminal 5 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

5 (B) - Ground: Continuity should exist  .

OK or NG

1. OK: GO TO  4 .
2. NG: Repair or replace harness.

Check continuity between door key cylinder switch terminal 1, 6 and 5.

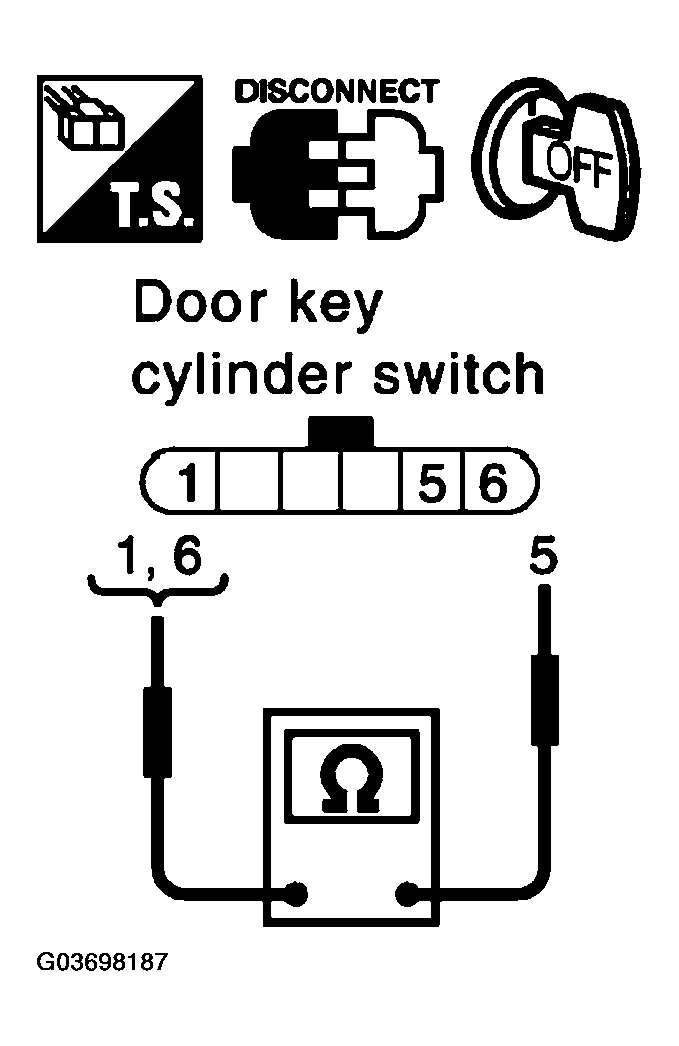

Fig 5: Checking Continuity Between Terminal 1, 6 & 5

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to SYMPTOM CHART  .
2. NG: Replace door key cylinder switch.
