Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

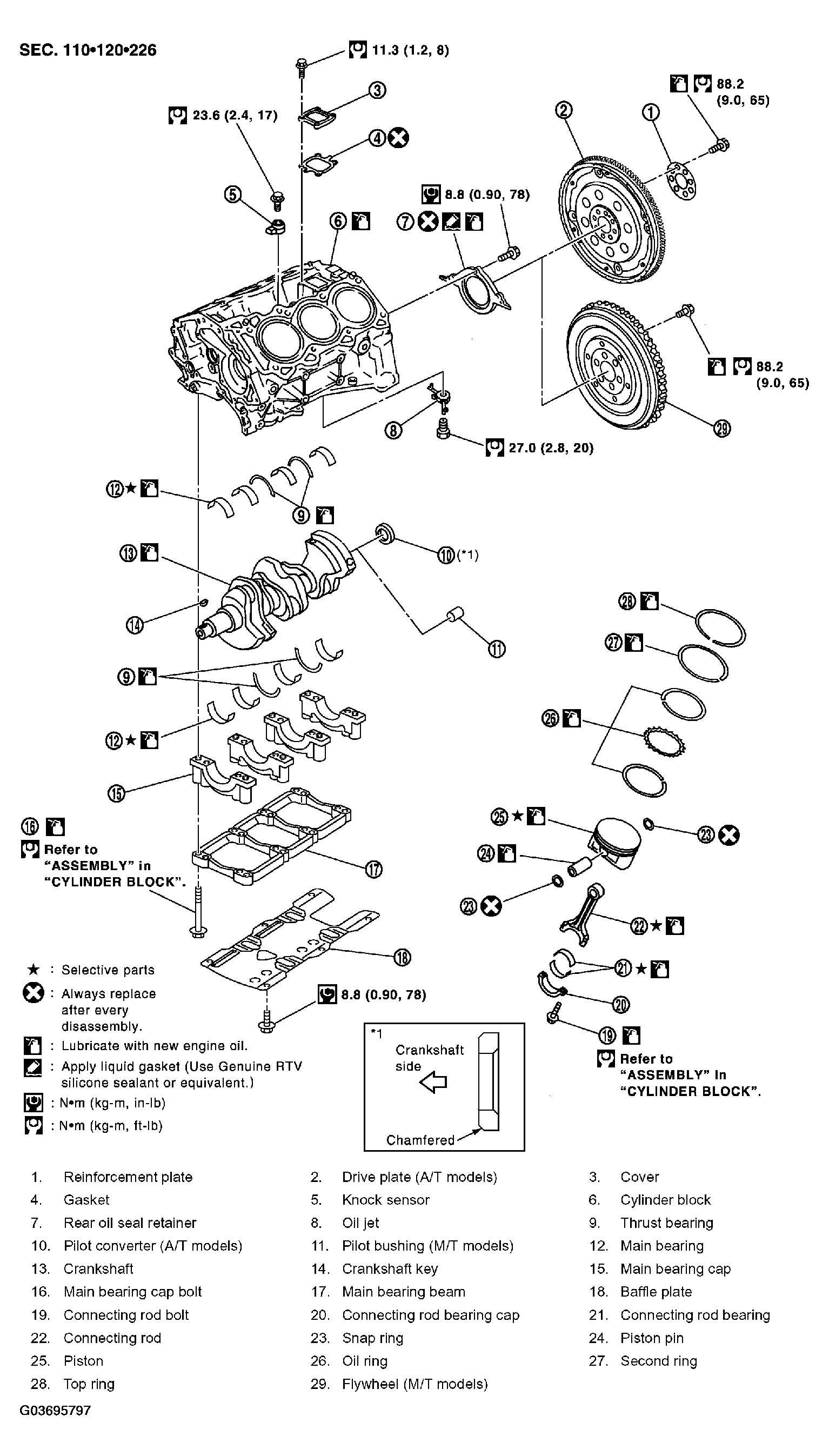

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
G03695797Courtesy of NISSAN MOTOR CO., U.S.A.

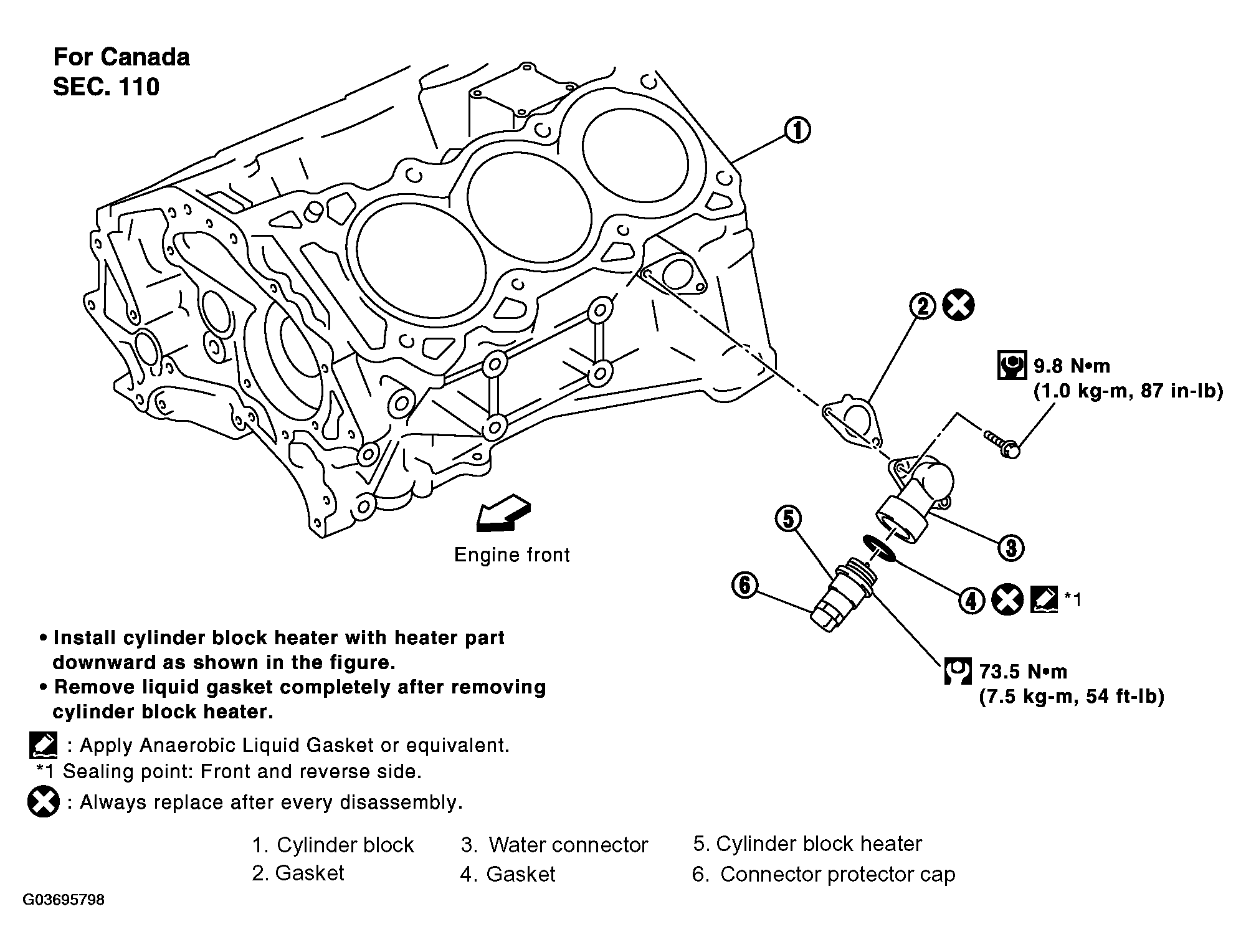

Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
G03695798Courtesy of NISSAN MOTOR CO., U.S.A.
