Section 1307 (Audio System)
>>
Audio
>>
Schematic
>>
Premium System (With NAVI)
Premium System (With NAVI)
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

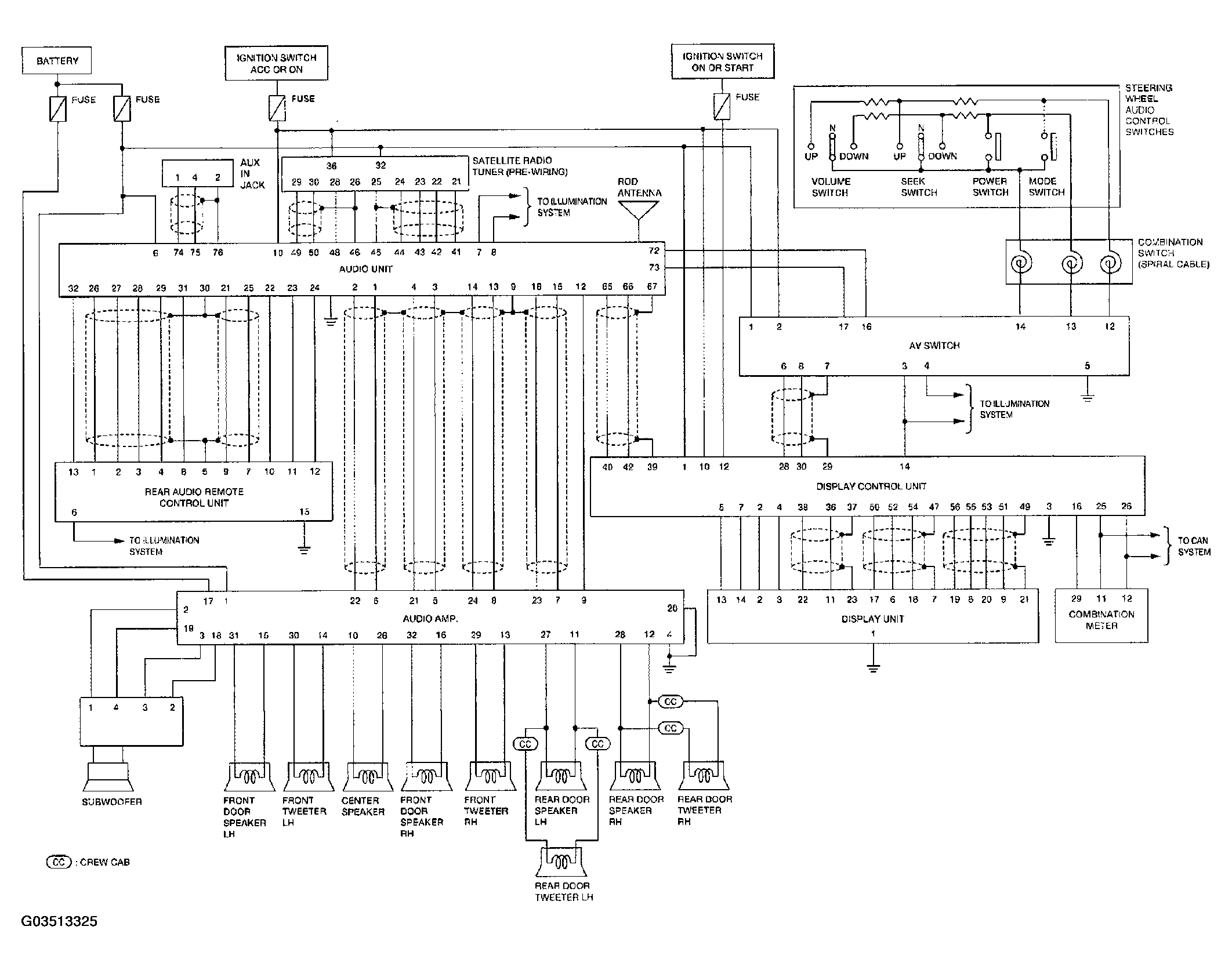

Fig 1: Audio Premium System (With NAVI)
Courtesy of NISSAN MOTOR CO., U.S.A.
