Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Altima, 2003 Nissan Altima, and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing wheel hub or wheel bearing from knuckle, replace wheel bearing assembly (outer race, inner races and grease seals) with a new one.
When replacing wheel bearing, replace complete wheel bearing assembly (inner races and outer race).

Press out wheel hub from knuckle with a suitable tool.

Fig 1: Pressing Out Wheel Hub From Knuckle With Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

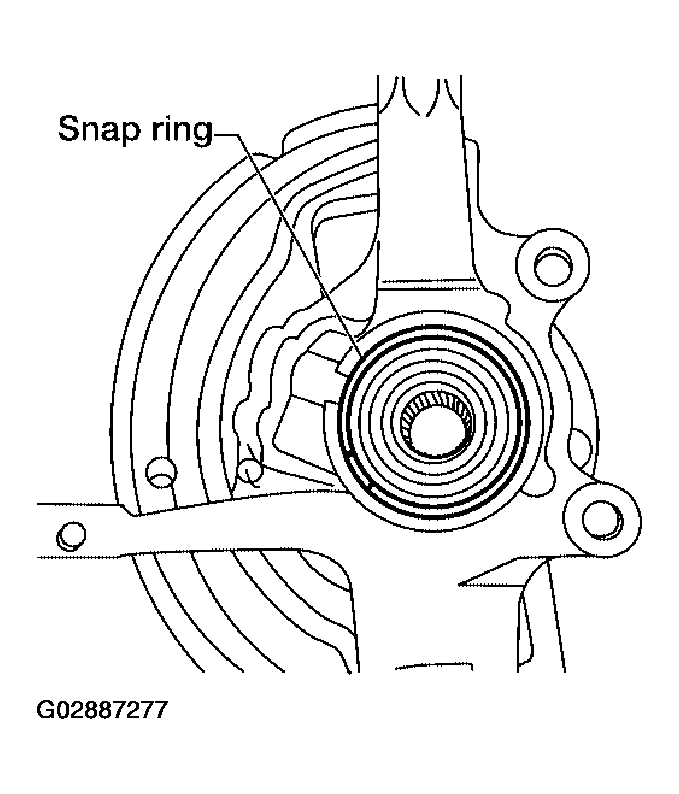

Remove snap rings.

Fig 2: Removing Snap Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out wheel bearing from knuckle.

Fig 3: Pressing Out Wheel Bearing From Knuckle
Courtesy of NISSAN MOTOR CO., U.S.A.
