Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Altima, 2003 Nissan Altima, and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install inner snap ring into groove of knuckle.
Press new wheel bearing assembly into knuckle until it contacts snap ring.
Maximum load P :50 kN (5.1 ton, 5.6 US ton, 5.02 Imp ton)
CAUTION:
- Do not press inner race of wheel bearing assembly.
- Do not apply oil or grease to mating surfaces of wheel bearing outer race and knuckle.
Install outer snap ring into groove of knuckle.

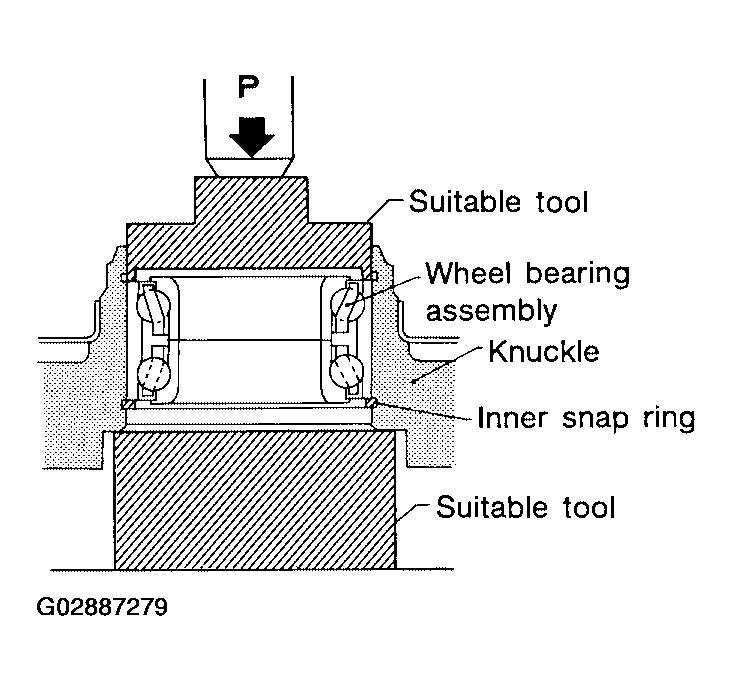

Fig 1: Pressing Wheel Bearing Assembly Into Knuckle Until It Contacts Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

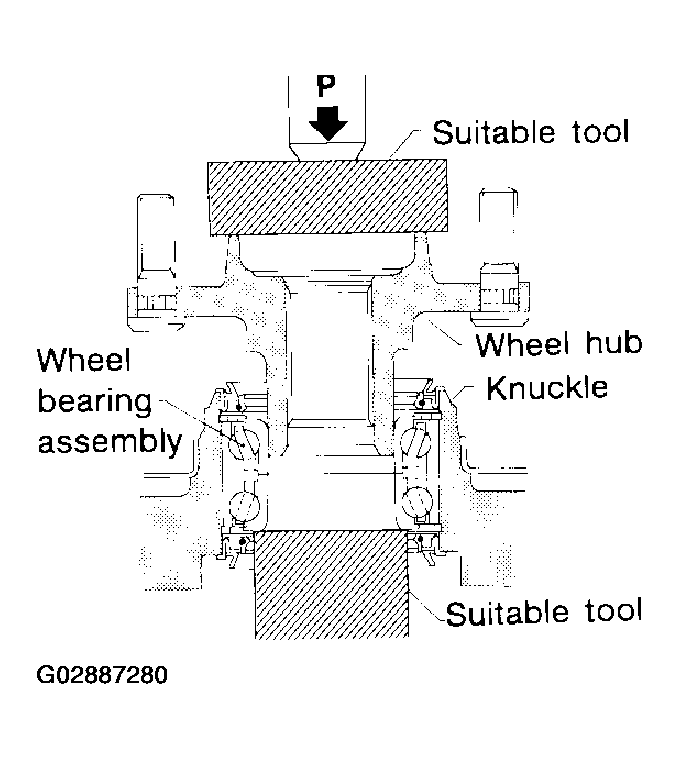

Press wheel hub into knuckle.
Maximum load P :50 kN (5.1 ton, 5.6 US ton, 5.02 Imp ton)
Check bearing operation.

Fig 2: Checking Bearing Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

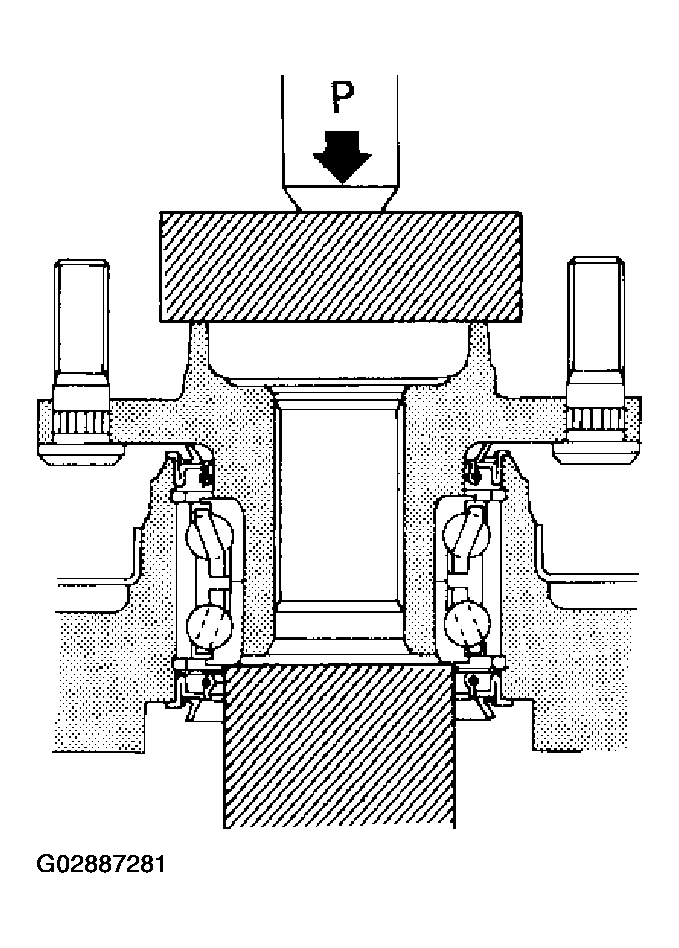

1. Add load P with press.
  Load P : 35-50 kN (3.6 - 5.1 ton, 3.9 - 5.6 US ton, 3.51 - 5.02 Imp ton)

  Fig 3: Identifying Load P With Press
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Spin knuckle several turns in both directions.
3. Make sure that wheel bearings operate smoothly.

  Fig 4: Making Sure That Wheel Bearings Operate Smoothly
  Courtesy of NISSAN MOTOR CO., U.S.A.
