Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION "
  2. Disconnect BCM connector.
  3. Remove screws (2) to remove BCM.

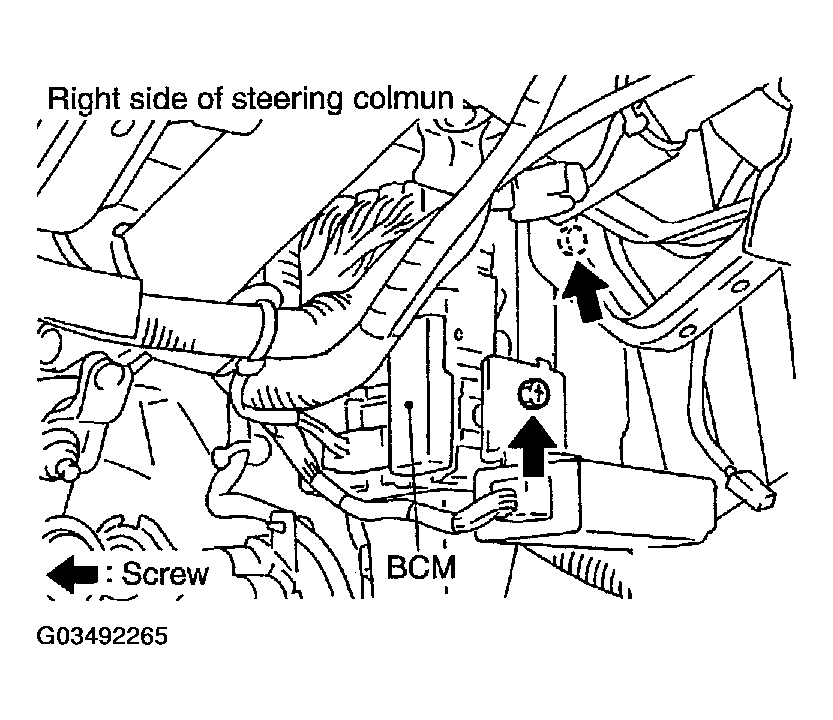

    Fig 1: Identifying BCM
    G03492265Courtesy of NISSAN MOTOR CO., U.S.A.
