Disassembly and Assembly of Combination Meter: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

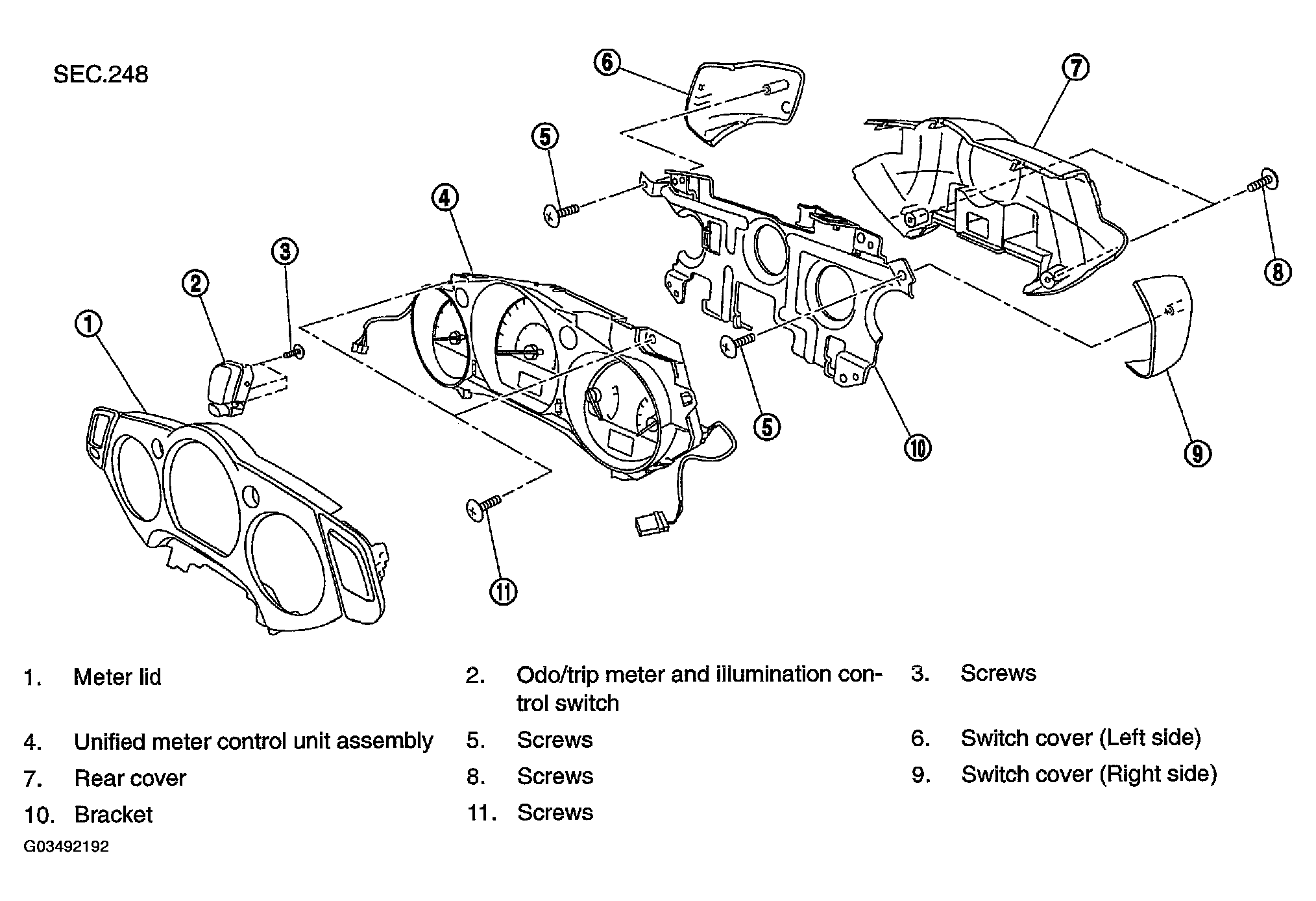

Fig 1: Exploded View Of Combination Meter
G03492192Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws (2). Disconnect odo/trip meter and illumination control switch and hazard switch connectors and remove meter lid.
    Fig 2: Removing Meter Lid
    G03492193Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove screws (3) and remove odo/trip meter and illumination control switch.
    Fig 3: Removing Odo/Trip Meter And Illumination Control Switch
    G03492194Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (2) and remove switch cover.
    Fig 4: Removing Switch Cover
    G03492195Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (2) and remove rear cover.
  5. Disengaged the tabs (2) to separate bracket.
  6. Remove bulbs.
    Fig 5: Removing Rear Cover
    G03492196Courtesy of NISSAN MOTOR CO., U.S.A.
