Wiring Diagram - COMBSW -

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

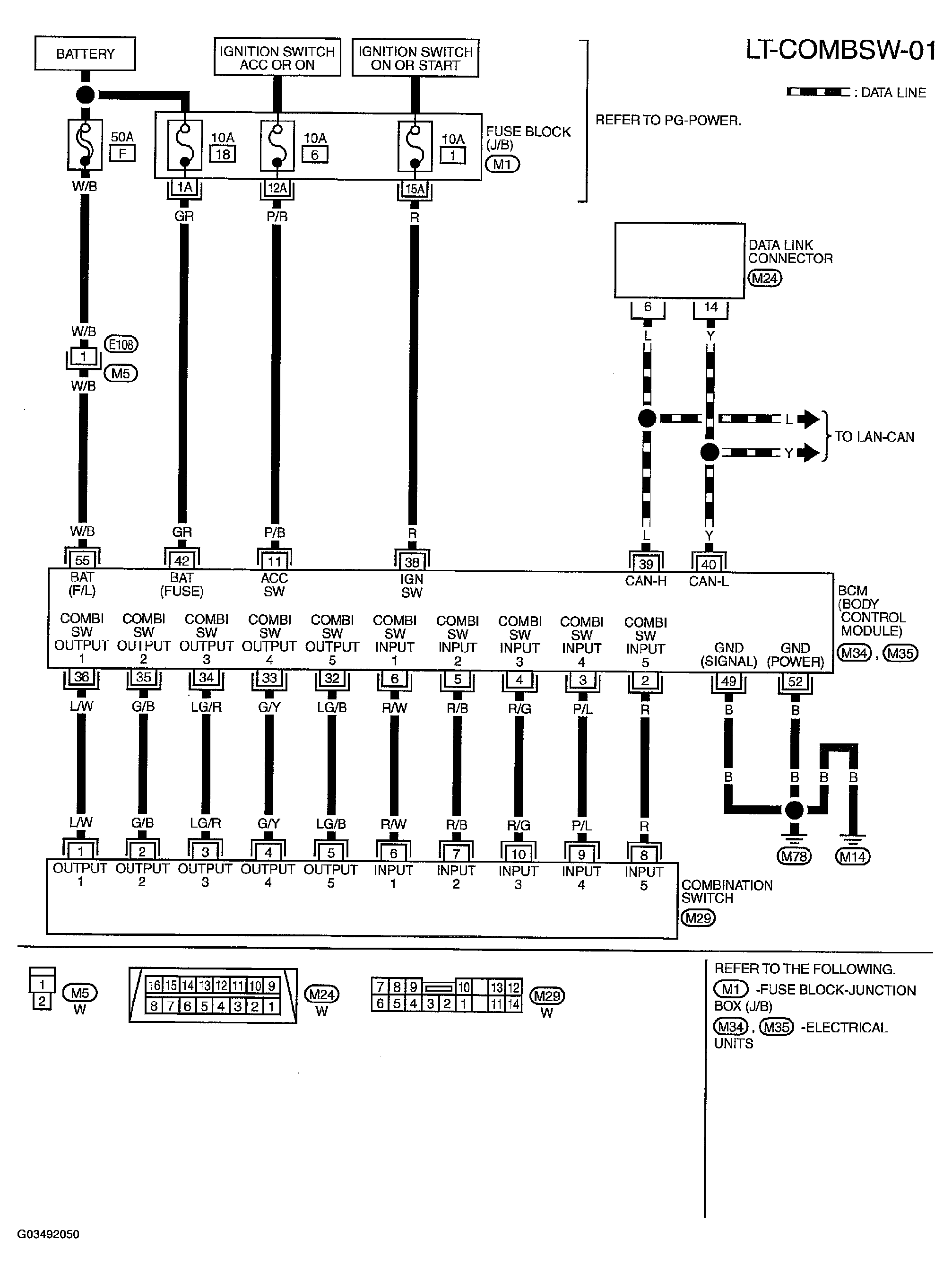

Fig 1: Combination Switch Wiring Diagram - LT-COMBSW-01

Courtesy of NISSAN MOTOR CO., U.S.A.
