Intake Sensor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The intake sensor is located on the heater & cooling unit. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the unified meter and A/C amp.

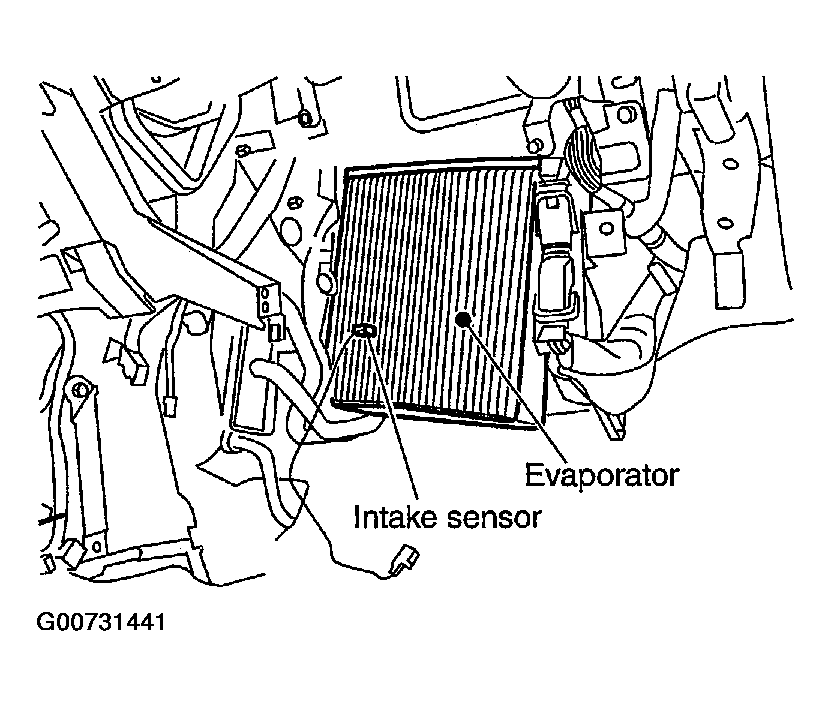

Fig 1: Locating Intake Sensor
G00731441Courtesy of NISSAN MOTOR CO., U.S.A.
