Pedal Adjusting Sensor Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Operate the pedal adjusting switch with "PEDAL SEN" on the DATA MONITOR to make sure the voltage changes.

PEDAL ADJUSTING SENSOR CIRCUIT CHECK CHART

Monitor item [OPERATION or UNIT]		Contents
PEDAL SEN	"V"	The pedal adjusting position (voltage) judged from the pedal adjust sensor signal is displayed.

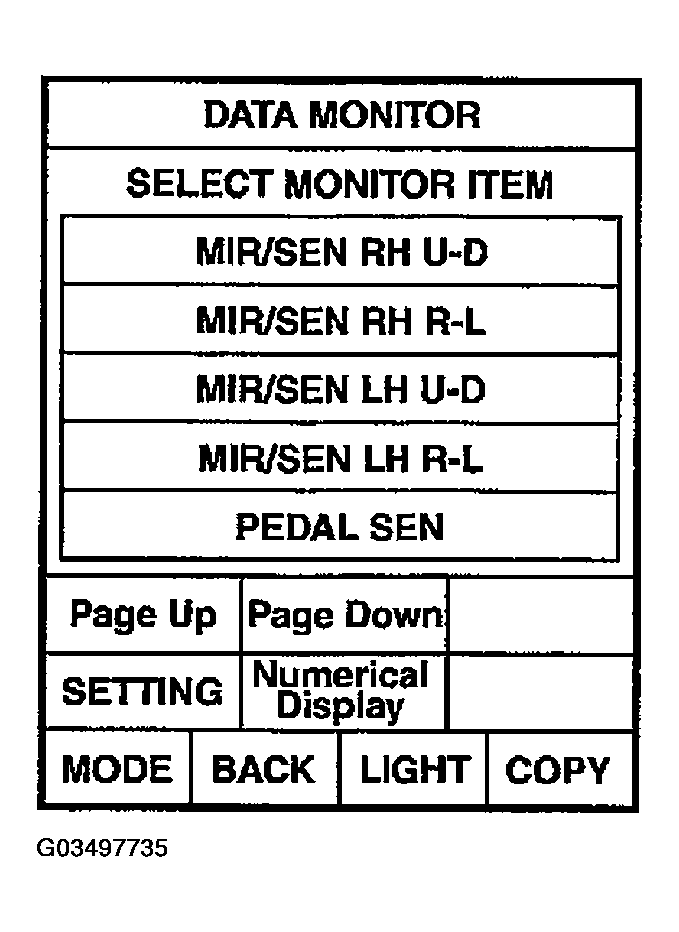

Fig 1: Scan Tool Displaying DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.

Check voltage between automatic drive positioner connector and ground.

VOLTAGE CHECK CHART

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx)
Connector	(+)	(-)	Condition	Voltage (V) (Approx)
M19	8 (P/B)	Ground	Pedal front end position	0.5
M19	8 (P/B)	Ground	Pedal back end position	4.5

Fig 2: Checking Voltage Between Automatic Drive Positioner Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Pedal adjusting sensor circuit is OK.
NG: GO TO 2.

CHECK PEDAL ADJUSTING SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and pedal adjusting sensor connector.
2. Check continuity between automatic drive positioner connector M19, M20 terminals 8 (P/B), 33 (W/L), 41 (Y) and pedal adjusting sensor connector E114 terminals 3 (Y), 4 (P/B), 5 (W/L).
  8 (P/B) - 4 (P/B): Continuity should exist.

  33 (W/L) - 5 (W/L): Continuity should exist.

  41 (Y) - 3 (Y): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector E114 terminals 8 (P/B), 33 (W/L), 41 (Y) and ground.
  8 (P/B) - Ground: Continuity should not exist.

  33 (W/L) - Ground: Continuity should not exist.

  41 (Y) - Ground: Continuity should not exist.
OK or NG
1. OK: Replace pedal adjusting motor.
2. NG: Repair or replace harness between automatic drive positioner and pedal adjusting sensor.

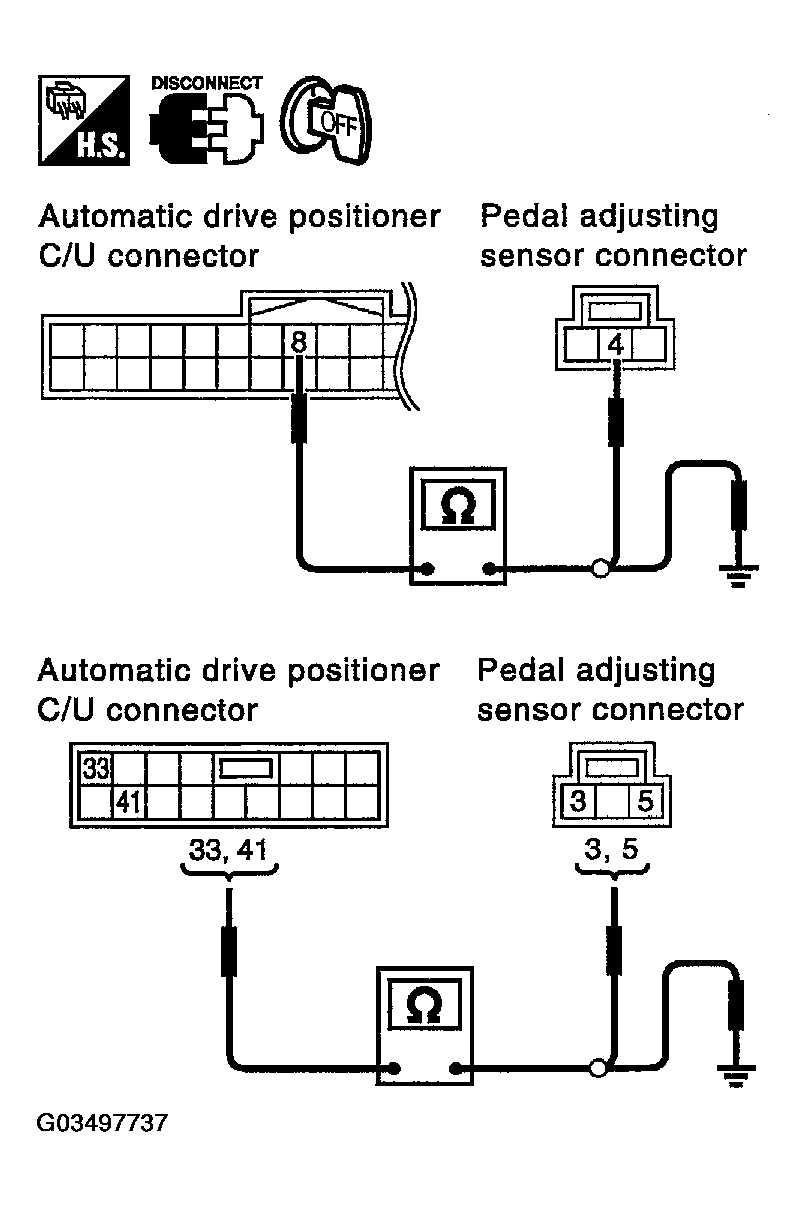

  Fig 3: Checking Continuity Between Automatic Drive Positioner Connector M19 And Pedal Adjusting Sensor Connector E114
