Check Door Lock and Unlock Switch

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW OPERATION
Does power window system operate normally?

OK or NG
1. OK: GO TO 2.
2. NG: Refer to "POWER WINDOW SYSTEM ".
CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
With CONSULT-II

Check door lock and unlock switch ("LOCK SW DR/AS" and "UNLK SW DR/AS") in DATA MONITOR mode with CONSULT-II.
- When door lock and unlock switch is turned to "LOCK":
  CDL LOCK SW: ON
- When door lock and unlock switch is turned to "UNLOCK":
  CDL UNLOCK SW: ON
Fig 1: CONSULT-II Function Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Remove key from ignition key cylinder.
2. Check the signal between BCM connector M34 terminal 22 and ground when door lock and unlock switch is turned "LOCK" or "UNLOCK".
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door lock and unlock switch is turned "LOCK" or "UNLOCK".
Fig 2: Terminal Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking Signal Between BCM Connector M34 Terminal 22 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Door lock and unlock switch circuit is OK.
2. NG: GO TO 3.
CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Disconnect BCM, power window main switch and front power window switch (passenger side) connectors.
2. Check continuity between BCM connector M34 terminal 22 and power window main switch (door lock and unlock switch) connector D6 terminal 14.
  22 (BR/W) - 14 (BR/W): Continuity should exist.
3. Check continuity between power window main switch connector D6 terminal 14 and ground.
  14 (BR/W) - Ground: Continuity should not exist.

  Fig 4: Checking Continuity Between BCM Connector M34 Terminal 22 And Power Window Main Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

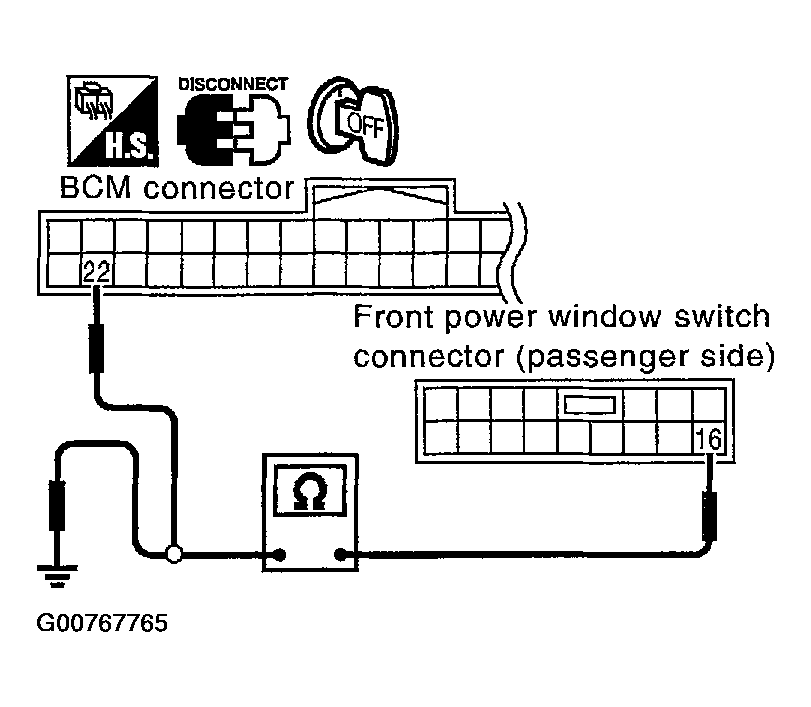

4. Check continuity between BCM connector M34 terminal 22 and front power window switch (passenger side) connector D35 terminal 16.
  22 (BR/W) - 16 (BR/W): Continuity should exist.
5. Check continuity between front power window switch (passenger side) connector D35 terminal 16 and ground.
  16 (BR/W) - Ground: Continuity should not exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness.

  Fig 5: Checking Continuity Between Front Power Window Switch Connector D35 Terminal 16 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DOOR LOCK AND UNLOCK SWITCH GROUND HARNESS
1. Check continuity between power window main switch (door lock and unlock switch) connector D7 terminal 17 and ground.
  17 (B) - Ground: Continuity should exist.

  Fig 6: Checking Continuity Between Power Window Main Switch Connector D7 Terminal 17 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check continuity between front power window switch (passenger side) connector D35 terminal 11 and ground.
  "11 (B) - Ground: Continuity should exist.
OK or NG
1. OK: Check harness connection.
  - If harness connection is OK, replace power window main switch or front power window switch (passenger side).
  - If harness connection is NG, repair or replace malfunction part of harness connection.
2. NG: Repair or replace harness.

  Fig 7: Checking Continuity Between Front Power Window Switch Connector D35 Terminal 11 And Ground
