Cooling Circuit

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

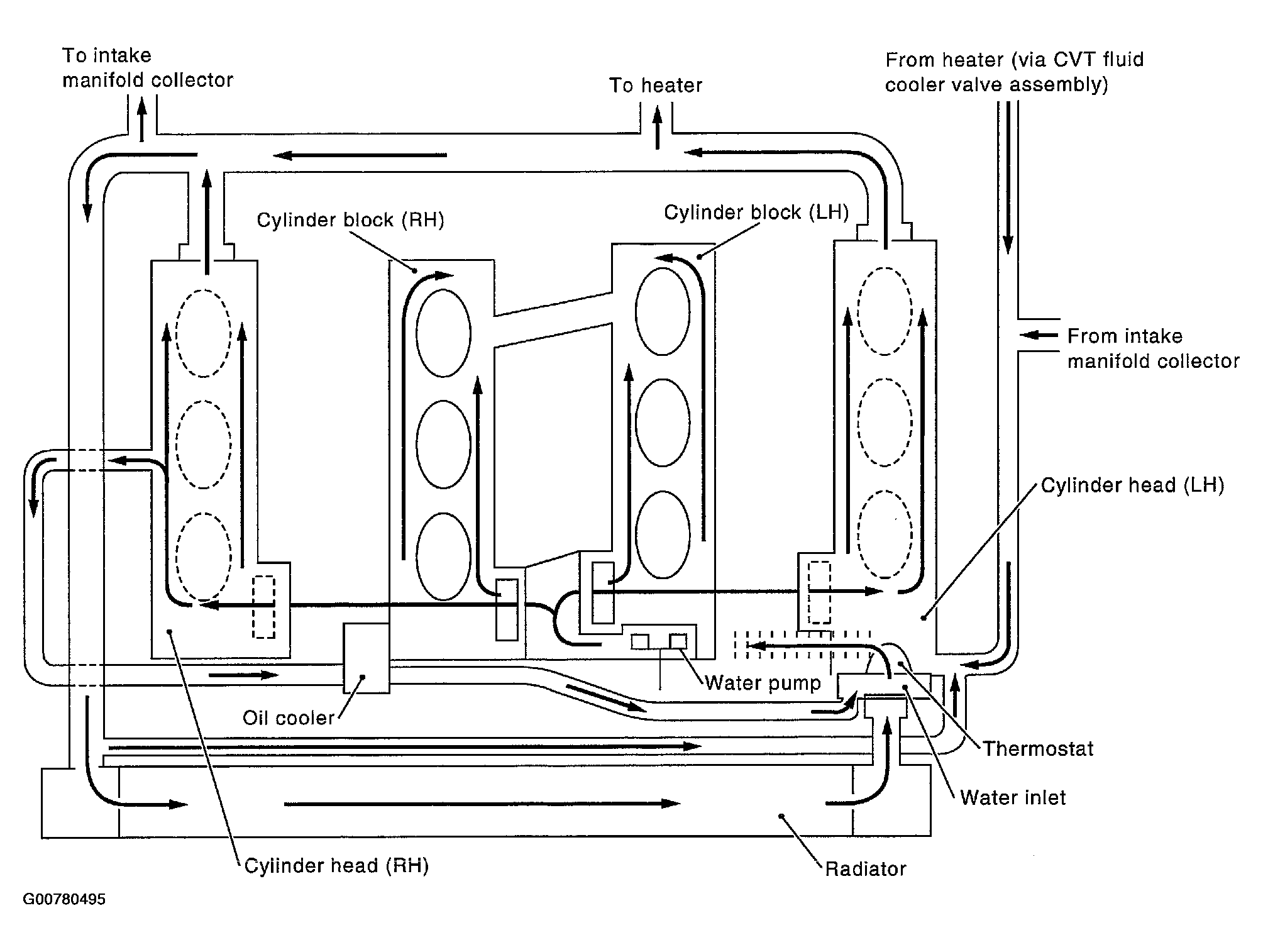

Fig 1: Cooling Circuit Diagram (1 Of 2)
G00780495Courtesy of NISSAN MOTOR CO., U.S.A.

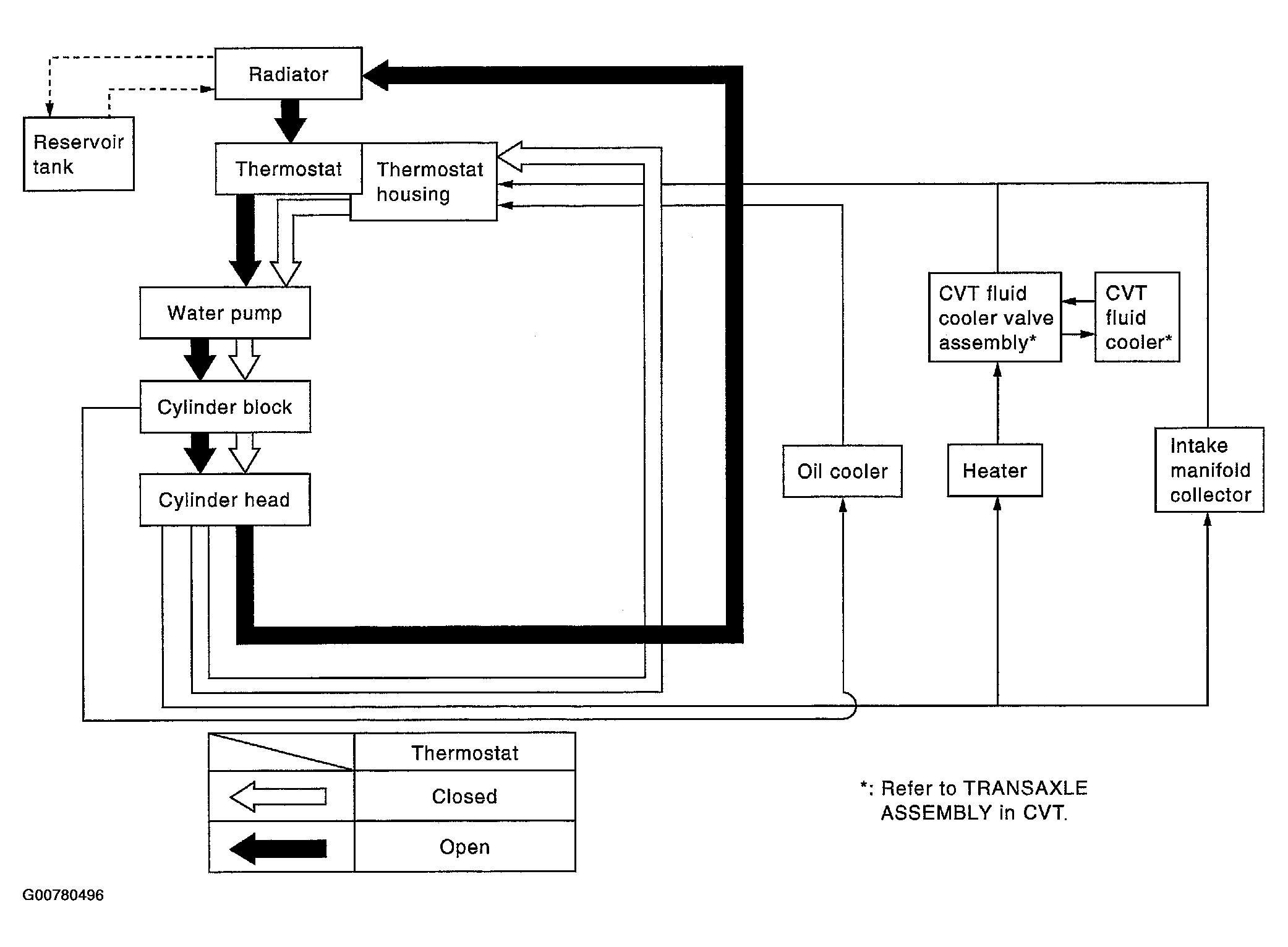

Fig 2: Cooling Circuit Diagram (2 Of 2)
G00780496Courtesy of NISSAN MOTOR CO., U.S.A.
