Removal and Installation of Display Unit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter. Refer to "REMOVAL AND INSTALLATION OF COMBINATION METER ".
  2. Remove combination meter rear cover.
  3. Disconnect combination meter ribbon cable.
  4. Remove the two display unit screws.
  5. Rotate bracket to remove it.
  6. Remove display unit.
  7. Installation is in reverse order of removal.

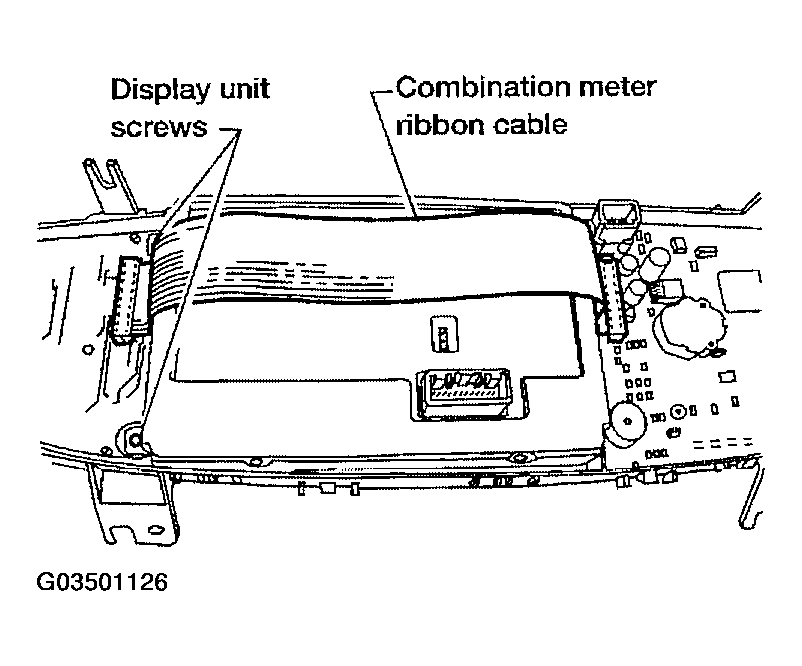

    Fig 1: Identifying Combination Meter Ribbon Cable
    G03501126Courtesy of NISSAN MOTOR CO., U.S.A.
