Mirror Motor LH Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR LH MECHANISM

    Check the following items.

    Operation malfunction caused by a foreign object caught in door mirror face edge.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair the malfunctioning parts, and check the symptom again.
  2. CHECK FUNCTION

    With CONSULT-II

    Check the operation with "MIRROR MOTOR LH" in the ACTIVE TEST.

    CHECK FUNCTION

    Test item Description
    MIRROR MOTOR LH The mirror motor LH moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.
    Fig 1: Display Active Test
    G03500352Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    1. OK: Mirror motor LH circuit is OK.
    2. NG: GO TO 3.
  3. CHECK MIRROR MOTOR LH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror LH.
    3. Check continuity between automatic drive positioner control unit connector M41 terminal 16 (O), 31 (R/Y), 32 (BR) and door mirror LH connector D13 terminal 9 (BR), 10 (R/Y), 11 (O).
      1. 16 (O) -11 (O): Continuity should exist.
      2. 31 (R/Y) -10 (R/Y): Continuity should exist.
      3. 32 (BR) - 9 (BR): Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M41 terminal 16 (O)5 31 (R/Y), 32 (BR) and ground.
      1. Q16 (O) - Ground: Continuity should not exist.
      2. 31 (R/Y) - Ground: Continuity should not exist.
      3. 32 (BR) - Ground: Continuity should not exist.

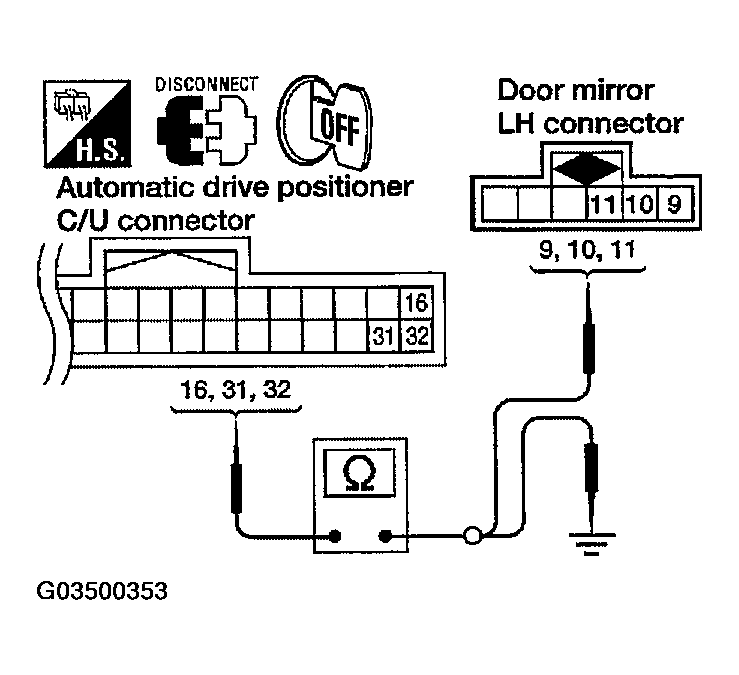

      Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector & Ground
      G03500353Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      1. OK: GO TO 4.
      2. NG: Repair or replace harness.
  4. CHECK MIRROR MOTOR SIGNAL
    1. Turn ignition switch ACC.
    2. Check voltage between door mirror LH connector and ground.
    CHECK MIRROR MOTOR SIGNAL

    Connector Terminals (Wire color) Condition Voltage (V) (Approx)
    (+) (-)
    D13 10 (R/Y) Ground When motor is UP operation 1.5 - Battery voltage
    Mirror motor LH OFF 0
    9 (BR) When motor is LEFT operation 1.5 - Battery voltage
    Mirror motor LH OFF 0
    11 (O) When motor is DOWN or RIGHT operation 1.5 - Battery voltage
    Mirror motor LH OFF 0
    Fig 3: Checking Voltage Between Door Mirror LH Connector & Ground
    G03500354Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace door mirror LH.
    2. NG: Repair or replace harness.
