Fuel Pump

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.

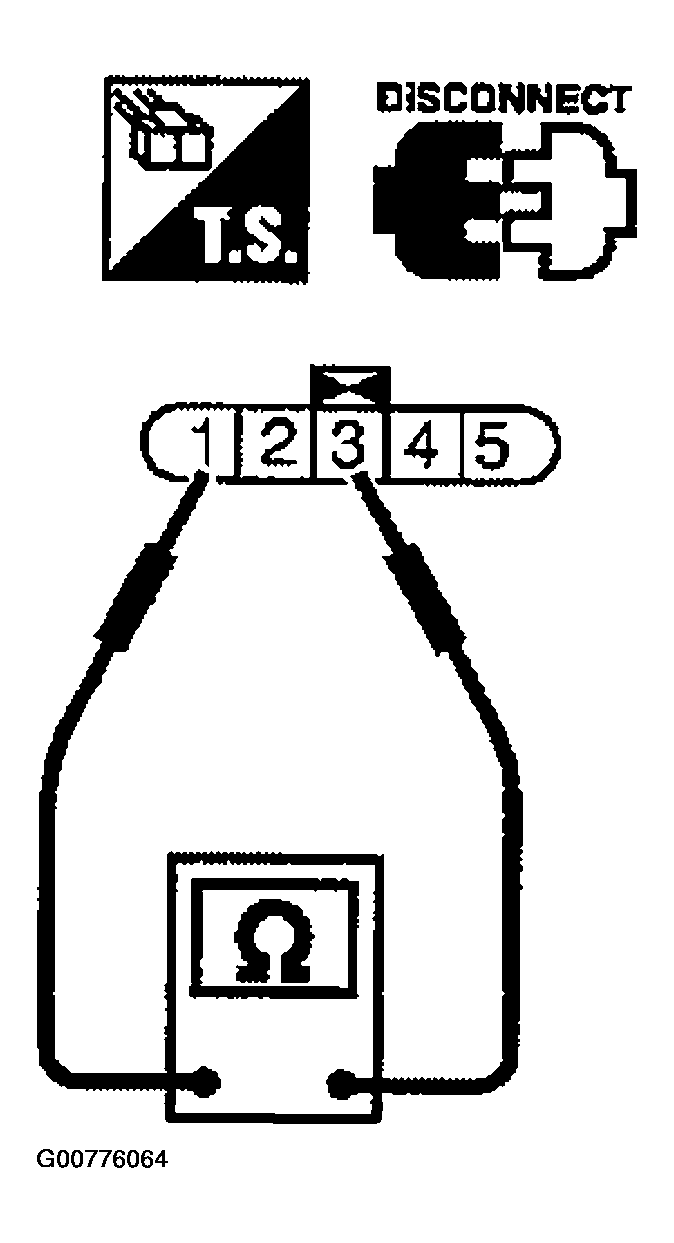

    Fig 1: Check Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 1 And 3
    G00776064Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Resistance: Approximately 1.0ohm [at 25°C (77°F)]
