With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

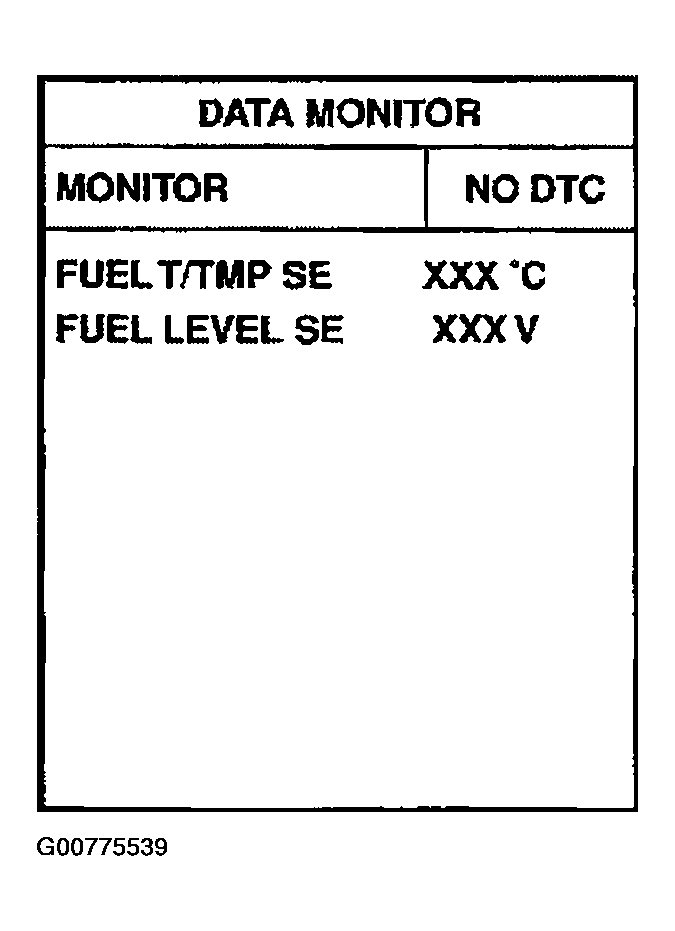

    Fig 1: Displaying Data Monitor Screen
    G00775539Courtesy of NISSAN MOTOR CO., U.S.A.
